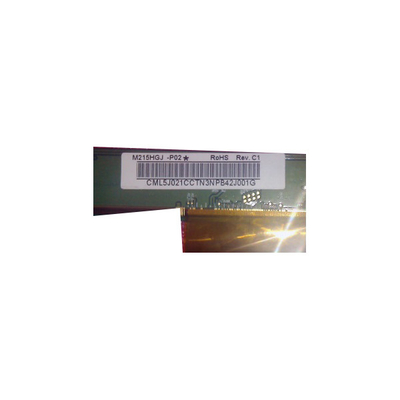

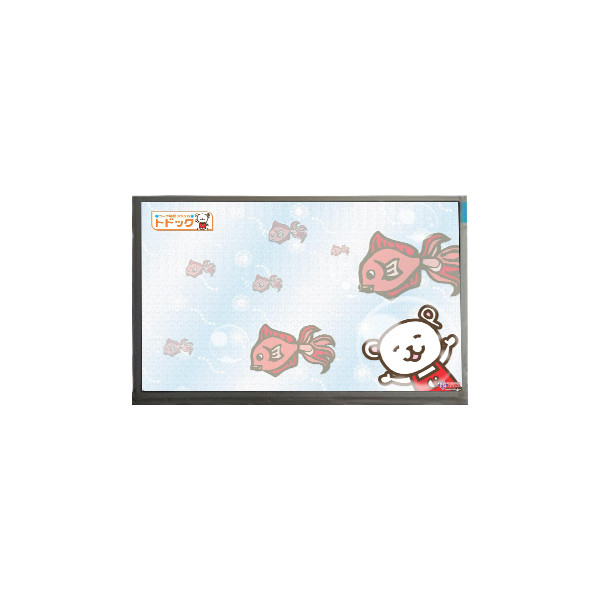

Original 1920*1080 M215HGJ-P02 21.5 inch 60Hz LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M215HGJ-P02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HGJ-P02 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 476.64(W)×268.11(H) Mm |
| Used For: | Desktop Monitor | Transmissivity: | 6.1% (Typ.)(with Polarizer) |
| Work Mode: | TN, Normally White, Transmissive | Response: | 1.5/3.5 (Typ.)(Tr/Td) Ms |
Product Description
Original 1920*1080 M215HGJ-P02 21.5 inch 60Hz LCD Screen
M215HGJ-P02 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M215HGJ-P02 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | - |
| Outline(mm) | 487.14(W)×280.41(H)×1.43(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 72% NTSC |
| Mass | 435/455g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Transmissivity | 6.1% (Typ.)(with Polarizer) |
| Backlight | No B/L, No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Driver IC list | Built-inCOG6 source COF + 3 gate COG chips |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
M215HGJ-P02 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
M215HGJ-P02 LCD Panel Shipping and Package :
M215HGJ-P02 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
M215HGJ-P02 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
M215HGJ-P02 LCD Panel FAQ :
Q: How long is the warranty of M215HGJ-P02 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of M215HGJ-P02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of M215HGJ-P02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods M215HGJ-P02 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
