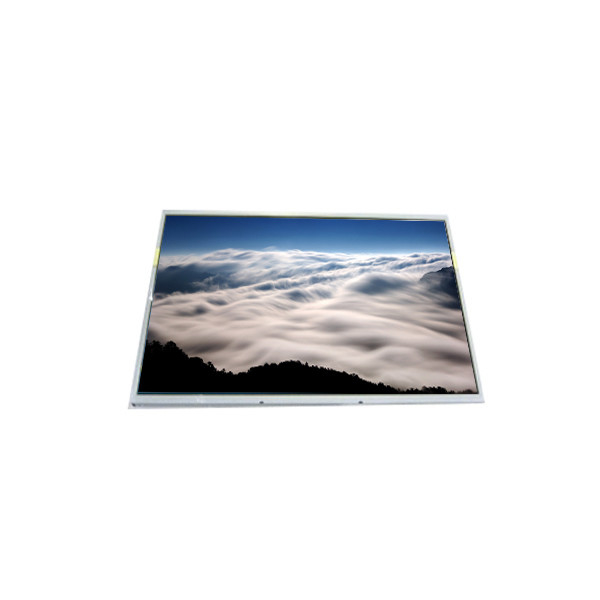

Name: 1080p 23.0 inch LM230WF5-TJC3 LCD Screen FOR Desktop Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LM230WF5-TJC3
Availability: InStock

Brand Name:	LG Display
Model Number:	LM230WF5-TJC3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF5-TJC3

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

509.184(W)×286.416(H) Mm

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Input Voltage:

5.0V (Typ.)

Environment:

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

1080p 23.0 inch LM230WF5-TJC3 LCD Screen FOR Desktop Monitor

LM230WF5-TJC3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF5-TJC3
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Size	526.184(W)×301.116(H)×1.83(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Glass Depth	0.70+0.70 mm
Transmissivity	-
Display Colors	16.7M 72%NTSC
Lamp Type	No B/L, Without Driver
Frequency	60Hz
Touch Screen	Without
Driver IC	COF Built-in 4 source chips
Panel Weight	655/690g (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

LM230WF5-TJC3 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

LM230WF5-TJC3 LCD Panel Shipping and Package :

1080p 23.0 inch LM230WF5-TJC3 LCD Screen FOR Desktop Monitor 0

LM230WF5-TJC3 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

LM230WF5-TJC3 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

LM230WF5-TJC3 LCD Panel FAQ :

Q: What happen if the lcd panel LM230WF5-TJC3 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can you declared low value of my order about LM230WF5-TJC3 ?

A: Yes , we can . But you need to leave message to us before shipping.

Q: When will my order LM230WF5-TJC3 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: How to order LM230WF5-TJC3 ?

A: We accept T/T , PAYPAL , WESTERN UNION .
