LCD Screen Display Panel

800*480 TM050RFH01 5.0 inch LCD Screen FOR Portable Navigation

All Category

Floor Standing Digital Signage

800*480 TM050RFH01 5.0 inch LCD Screen FOR Portable Navigation

Brand Name:	TIANMA
Model Number:	TM050RFH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

TM050RFH01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

800(RGB)×480, WVGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108(W)×64.8(H) Mm

Used For:

Portable Navigation、MID UMPC、MP3 PMP

Frame Rate:

Operating Mode:

TN, Normally White, Transmissive

Plate Thickness:

0.50+0.50 Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

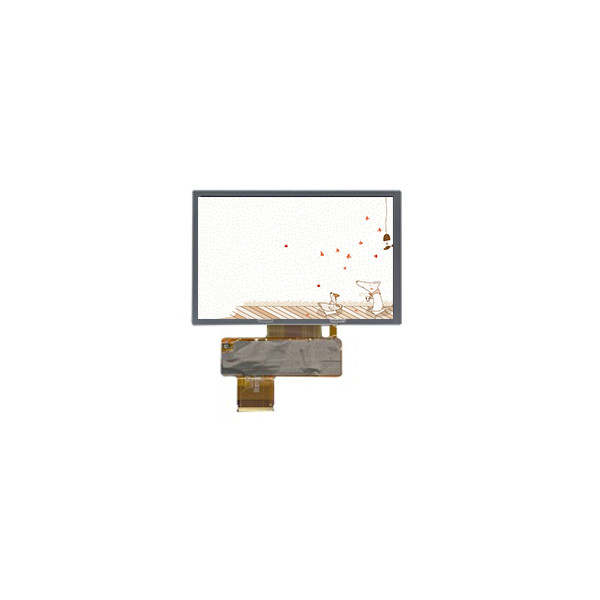

800*480 TM050RFH01 5.0 inch LCD Screen FOR Portable Navigation

TM050RFH01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM050RFH01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	-
Outline Dim.	114.5(H)×73.2(V)×1.43(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	-
Support Color	16.7M 50%NTSC
Light Source	No B/L, W/O Driver
Weight	TBD
Designed For	Portable Navigation,MID UMPC,MP3 PMP
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 1 source chips
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Power Supply	3.3/12.61/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM050RFH01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TM050RFH01 LCD Panel Shipping and Package :

800*480 TM050RFH01 5.0 inch LCD Screen FOR Portable Navigation 0

TM050RFH01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TM050RFH01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TM050RFH01 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of TM050RFH01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of TM050RFH01 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TM050RFH01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of TM050RFH01 ?

A: we will give you tracking number then you can trace your order from website.
