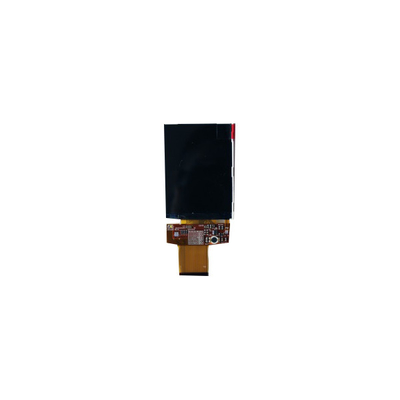

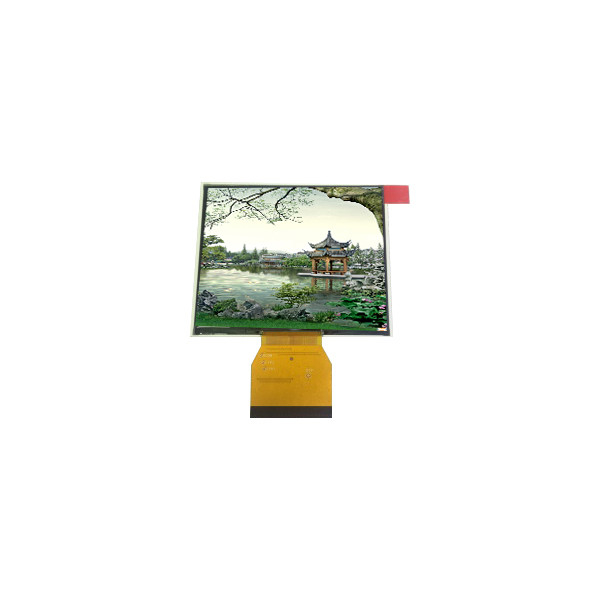

800*480 TM062RYH02 6.2 inch LCD Screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM062RYH02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM062RYH02 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 800(RGB)×480, WVGA 150PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 137.4(W)×77.28(H) Mm |
| Used For: | Automotive Display、Digital Photo Frame、Portable DVD Player | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Viewing Angle: | 75/75/60/70 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
Product Description
800*480 TM062RYH02 6.2 inch LCD Screen Monitor
TM062RYH02 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM062RYH02 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.4(W)×77.28(H) mm |
| Bezel Opening | - |
| Outline Size | 146.3(W)×86.38(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.9% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 48%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8264D + HX8664B, HX8264A + HX8664B, HT39416J + NT52001, NT39416Q + NT52001, ILI6123C + ILI5960 |
| Panel Weight | TBD |
| Application | Automotive Display,Digital Photo Frame,Portable DVD Player |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
TM062RYH02 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
