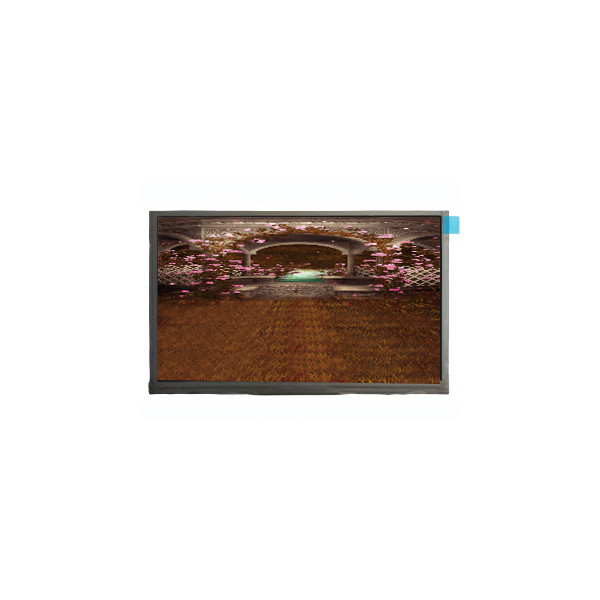

1366*768 P116NWR1 R2 11.6 inch LCD Display for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | P116NWR1 R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P116NWR1 R2 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Used For: | Laptop | Support Color: | 262K 45%NTSC |
| Light Source: | No B/L | Frame Rate: | 60Hz |
Product Description
1366*768 P116NWR1 R2 11.6 inch LCD Display for Laptop
P116NWR1 R2 LCD Panel Product details :
| Brand | IVO |
| Model P/N | P116NWR1 R2 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 264.3(H)×154.3(V)×1.26(D) mm |
| Treatment | Glare (Haze 0%), Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 10 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 5.83% (Typ.)(with Polarizer) |
| Support Color | 262K 45%NTSC |
| Light Source | No B/L |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 2 source + 2 gate chips |
| Interface Type | eDP (1 Lane), eDP1.1a, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
P116NWR1 R2 LCD Panel Shipping and Package :
P116NWR1 R2 LCD Panel FAQ :
Q: Can you tested the P116NWR1 R2 before shipping ?
A: Of course , our lcd panel P116NWR1 R2 was Strictly tested before shipping.
Q: How to order P116NWR1 R2 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel P116NWR1 R2 received can't work ?
A:P116NWR1 R2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
