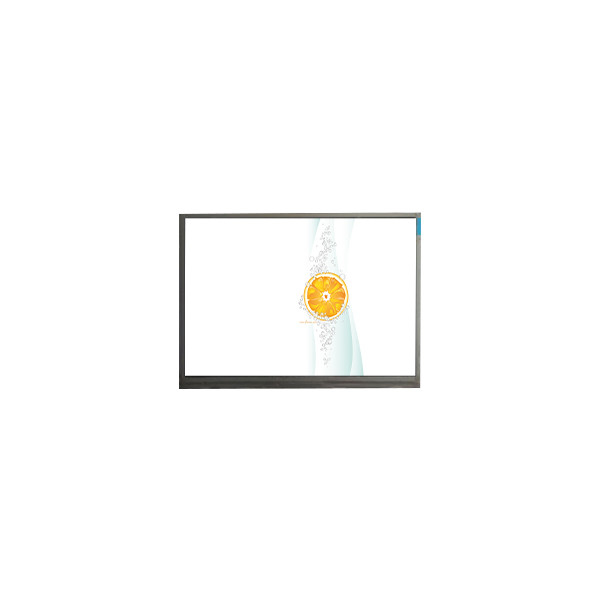

MT230DW03 V.1 23.0 inch 1080p LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | MT230DW03 V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MT230DW03 V.1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 509.184(W)×286.416(H) Mm |
| Used For: | Desktop Monitor | Frame Rate: | 75Hz |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
MT230DW03 V.1 23.0 inch 1080p LCD Screen Display Panel
MT230DW03 V.1 LCD Panel Product details :
| Brand | Chimei Innolux |
| Model P/N | MT230DW03 V.1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.784(W)×291.016(H) mm |
| Outline Dim. | 533.2(W)×312(H) ×11.5(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 11S4P WLED , 30K hours , Without Driver |
| Panel Weight | 2.40/2.50Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
MT230DW03 V.1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
MT230DW03 V.1 LCD Panel Shipping and Package :
MT230DW03 V.1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
MT230DW03 V.1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
MT230DW03 V.1 LCD Panel FAQ :
Q: How do you ship my goods MT230DW03 V.1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of MT230DW03 V.1 ?
A: 90 days warranty .
Q: How can I trace my order of MT230DW03 V.1 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of MT230DW03 V.1 ?
A: Of course!If you make a large order, we will give you a discount.
