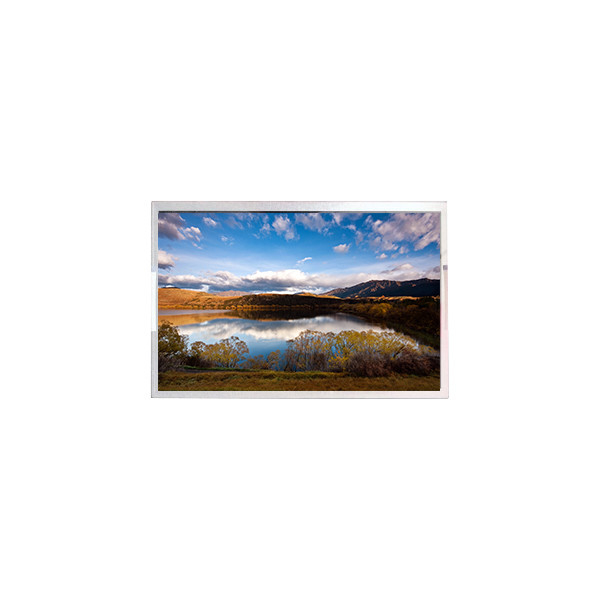

Name: Original 9.2 inch 1920*384 C092AWF1-0 LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: C092AWF1-0
Availability: InStock

Brand Name:	IVO
Model Number:	C092AWF1-0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C092AWF1-0

Diagonal Size:

9.2"

Panel Type:

A-Si TFT-LCD, CELL , Full Cell

Resolution:

1920×384(RGB) 212PPI

Pixel Format:

RGB Horizontal Stripe

Active Area:

229.25(W)×45.85(H) Mm

Used For:

Automotive Display

Frame Rate:

60Hz

Transmissivity:

3.55% (Typ.)(with Polarizer)

Support Color:

74% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 9.2 inch 1920*384 C092AWF1-0 LCD Screen

C092AWF1-0 LCD Panel Product details :

Brand	IVO
Model P/N	C092AWF1-0
Diagonal Size	9.2"
Panel Type	a-Si TFT-LCD, CELL , Full Cell
Resolution	1920×384(RGB) 212PPI
Pixel Format	RGB Horizontal Stripe
Active Area	229.25(W)×45.85(H) mm
Bezel Opening	-
Outline Dim.	234.85 × 54.35 × 0.8 (H×V×D)
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Max.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	3.55% (Typ.)(with Polarizer)
Support Color	74% NTSC
Light Source	No B/L
Weight	25.0/27.6g (Typ./Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Driver IC list	Suggest COG HX8691-A00APD200-LT + HX8290-G01TPD2005-GP
Environment	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C

C092AWF1-0 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

C092AWF1-0 LCD Panel Shipping and Package :

Original 9.2 inch 1920*384 C092AWF1-0 LCD Screen 0

C092AWF1-0 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

C092AWF1-0 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

C092AWF1-0 LCD Panel FAQ :

Q: Do you accept sample orders of C092AWF1-0 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of C092AWF1-0 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of C092AWF1-0 ?

A: The order will be shipped within 2-3 working days after received your payment.
