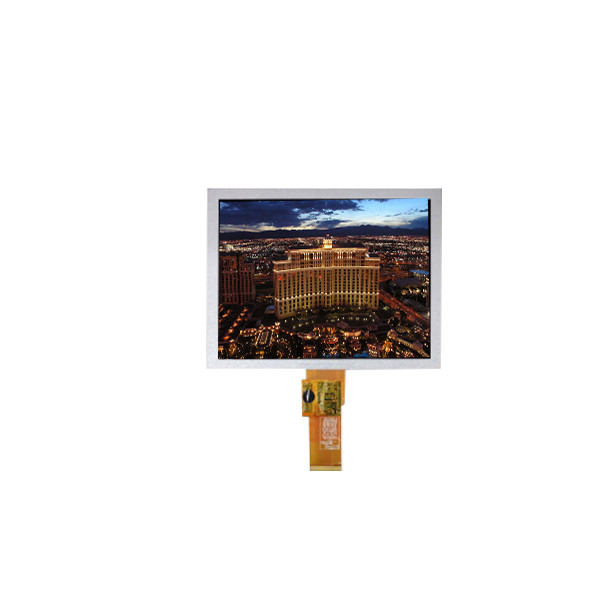

Name: Original 800*600 TM080SDH06 8.0 inch TFT LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM080SDH06
Availability: InStock

Brand Name:	AVIC
Model Number:	TM080SDH06
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM080SDH06

Diagonal Size:

8.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 125PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162(W)×121.5(H) Mm

Used For:

Digital Photo Frame

Frequency:

60Hz

Input Voltage:

3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Environment:

Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 800*600 TM080SDH06 8.0 inch TFT LCD Screen Panel

TM080SDH06 LCD Panel Product details :

Brand	AVIC
Model P/N	TM080SDH06
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	162(W)×121.5(H) mm
Bezel Opening	164.8(W)×124.3(H) mm
Outline Size	183(W)×141(H) mm
Surface	Antiglare
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 50%NTSC
Lamp Type	3S9PWLED, 20K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	190g
Application	Digital Photo Frame
Signal Interface	Parallel RGB (1 ch, 6/8-bit), 50 pins FPC
Input Voltage	3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM080SDH06 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TM080SDH06 LCD Panel Shipping and Package :

Original 800*600 TM080SDH06 8.0 inch TFT LCD Screen Panel 0

TM080SDH06 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TM080SDH06 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TM080SDH06 LCD Panel FAQ :

Q: How long is the warranty of TM080SDH06 ?

A: 90days warranty .

Q: How can I trace my order of TM080SDH06 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods TM080SDH06 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for TM080SDH06 ?

A: Of course!sample order is welcome !
