LCD Screen Display Panel

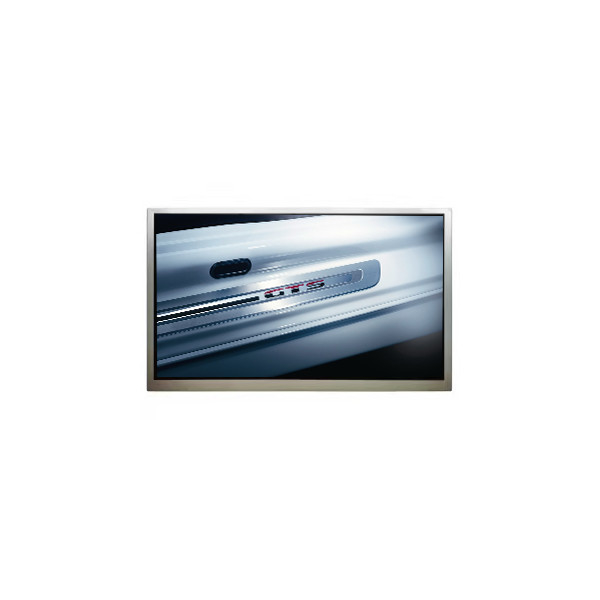

HSD090IDW1-A10 9.0 inch 800*480 60 pins LCD Screen Monitor

All Category

Floor Standing Digital Signage

HSD090IDW1-A10 9.0 inch 800*480 60 pins LCD Screen Monitor

Brand Name:	HannStar
Model Number:	HSD090IDW1-A10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

HSD090IDW1-A10

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 104PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

198(W)×112.08(H) Mm

Used For:

Digital Photo Frame、Portable DVD Player

Signal Interface:

TTL (1 Ch, 6/8-bit), 60 PinsFPC

Input Voltage:

3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)

Environment:

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 M/s²)

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD090IDW1-A10 9.0 inch 800*480 60 pins LCD Screen Monitor

HSD090IDW1-A10 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD090IDW1-A10
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 104PPI
Pixel Format	RGB Vertical Stripe
Active Area	198(W)×112.08(H) mm
Bezel Opening	201.1(W)×115.15(H) mm
Outline Size	210.7(W)×126.4(H)×5.6(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	5.5/10.5(Typ.)(Tr/Td)
Display Colors	262K/16.2M 47%NTSC
Lamp Type	3S7PWLED, 20K hours, Without Driver
Frequency	-
Touch Screen	Without
Panel Weight	240g (Typ.)
Application	Digital Photo Frame,Portable DVD Player
Signal Interface	TTL (1 ch, 6/8-bit), 60 pinsFPC
Input Voltage	3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD090IDW1-A10 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

HSD090IDW1-A10 LCD Panel Shipping and Package :

HSD090IDW1-A10 9.0 inch 800*480 60 pins LCD Screen Monitor 0

HSD090IDW1-A10 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

HSD090IDW1-A10 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

HSD090IDW1-A10 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of HSD090IDW1-A10 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HSD090IDW1-A10 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of HSD090IDW1-A10 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
