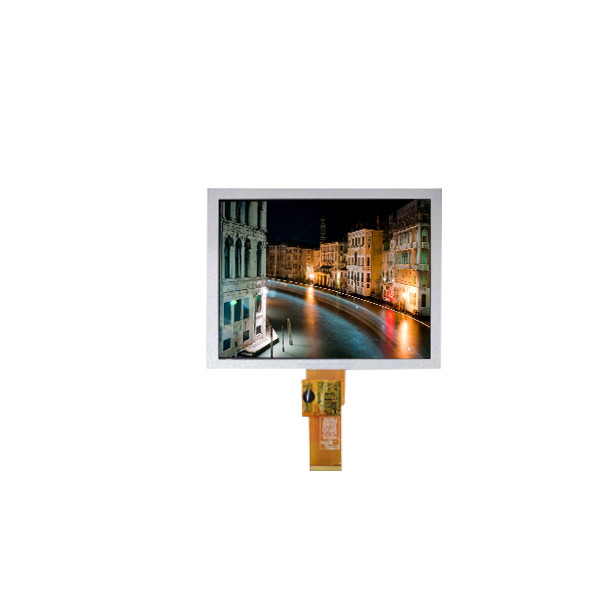

1280*768 TM080XFH03 8.0 inch LCD Screen for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | AVIC |
| Model Number: | TM080XFH03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM080XFH03 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 1280(RGB)×768, WXGA 187PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 173.76(W)×104.256(H) Mm |
| Used For: | Netbook PC | Input Voltage: | 3.3/12.5/22/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Lamp Type: | No B/L | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
1280*768 TM080XFH03 8.0 inch LCD Screen for Netbook PC
TM080XFH03 LCD Panel Product details :
| Brand | AVIC |
| Model P/N | TM080XFH03 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1280(RGB)×768, WXGA 187PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 173.76(W)×104.256(H) mm |
| Bezel Opening | - |
| Outline Size | 181(W)×113.3(H)×1.43(D) mm |
| Surface | Clear |
| Brightness | 0 cd/m² |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/60/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 3 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.70+0.70 mm |
| Transmissivity | 4.0% (Typ.)(with Polarizer) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Built-in 2 source + 2 gate chips |
| Shape Style | - |
| Application | Netbook PC |
| Signal Interface | Mini LVDS, 40 pinsFPC |
| Input Voltage | 3.3/12.5/22/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
TM080XFH03 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TM080XFH03 LCD Panel Shipping and Package :
TM080XFH03 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TM080XFH03 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TM080XFH03 LCD Panel FAQ :
Q: What happen if the lcd screen TM080XFH03 I received can't work ?
A: Our TM080XFH03 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order TM080XFH03 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of TFT-LCD TM080XFH03 ?
A: 90days.
Q: Can you declared low price of my 15.0 inch lcd panel TM080XFH03 when shipping?
A: Yes , please inform us the value you want .
