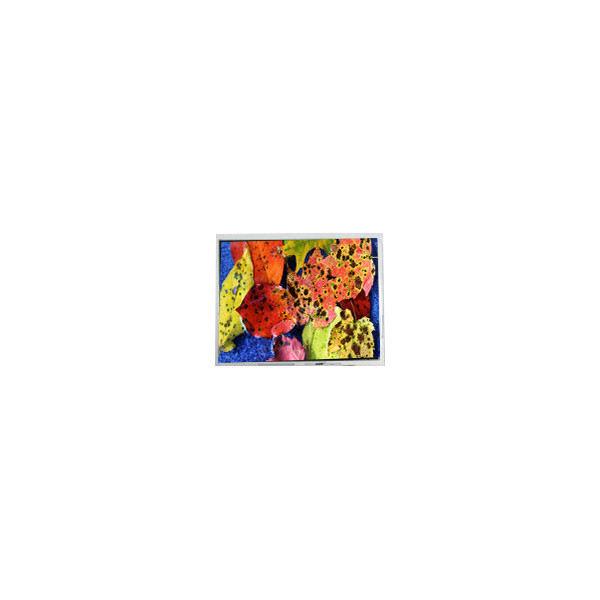

Name: 800*600 AM-80060K3TMQW-02H 10.4 inch LVDS LCD Screen Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: AM-80060K3TMQW-02H
Availability: InStock

Brand Name:	AMPIRE
Model Number:	AM-80060K3TMQW-02H
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AM-80060K3TMQW-02H

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Used For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

800*600 AM-80060K3TMQW-02H 10.4 inch LVDS LCD Screen Display

AM-80060K3TMQW-02H LCD Panel Product details :

Brand	AMPIRE
Model P/N	AM-80060K3TMQW-02H
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	214.8(W)×162.7(H) mm
Outline Size	243(W)×185.6(H)×7.7(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 50%NTSC
Frequency	60Hz
Weight	TBD
Surface	-
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	5/15 (Typ.)(Tr/Td)
Lamp Type	WLED , 70K hours , With LED Driver
Touch Screen	Without
Application	Industrial
Signal Interface	LVDS (1 ch, 6-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
800*600 AM-80060K3TMQW-02H 10.4 inch LVDS LCD Screen Display

AM-80060K3TMQW-02H LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

AM-80060K3TMQW-02H LCD Panel Shipping and Package :

800*600 AM-80060K3TMQW-02H 10.4 inch LVDS LCD Screen Display 0

AM-80060K3TMQW-02H LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

AM-80060K3TMQW-02H LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

AM-80060K3TMQW-02H LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the AM-80060K3TMQW-02H sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
