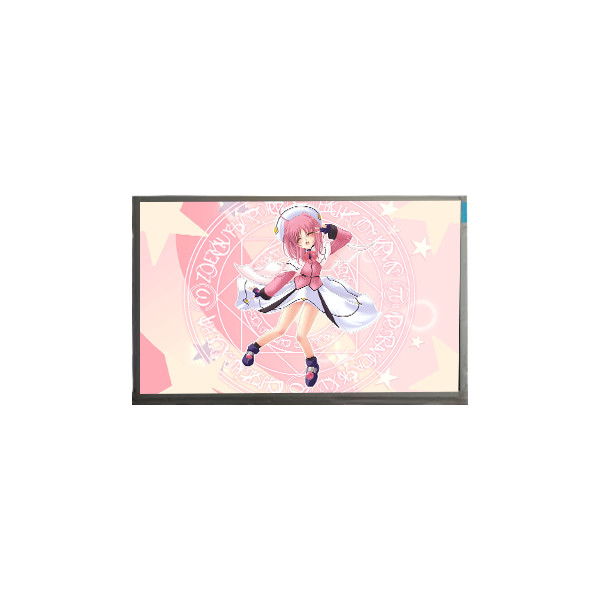

Name: M200FGE-L1A 20.0 inch 1600*900 30 pins LCD Screen Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M200FGE-L1A
Availability: InStock

Brand Name:	Chimei Innolux
Model Number:	M200FGE-L1A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M200FGE-L1A

Diagonal Size:

20.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×900, HD+ 91PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

442.8(W)×249.075(H) Mm

Used For:

Desktop Monitor

Light Source:

3 Strings WLED , 30K Hours , No Driver

Frame Rate:

75Hz

Signal Type:

LVDS (2 Ch, 8-bit) , Connector 30 Pins

Supply Ability:

100000 Unit/Units per Month

Product Description

M200FGE-L1A 20.0 inch 1600*900 30 pins LCD Screen Display

M200FGE-L1A LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	M200FGE-L1A
Diagonal Size	20.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	442.8(W)×249.075(H) mm
Bezel Opening	446.8(W)×253.2(H) mm
Outline Dim.	462.8×272×11 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.5/3.5 (Typ.)(Tr/Td) ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	3 strings WLED , 30K hours , No Driver
Mass	1.40±0.15Kgs
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Signal Type	LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M200FGE-L1A LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

M200FGE-L1A LCD Panel Shipping and Package :

M200FGE-L1A 20.0 inch 1600*900 30 pins LCD Screen Display 0

M200FGE-L1A LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

M200FGE-L1A LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

M200FGE-L1A LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of M200FGE-L1A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of M200FGE-L1A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of M200FGE-L1A ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
