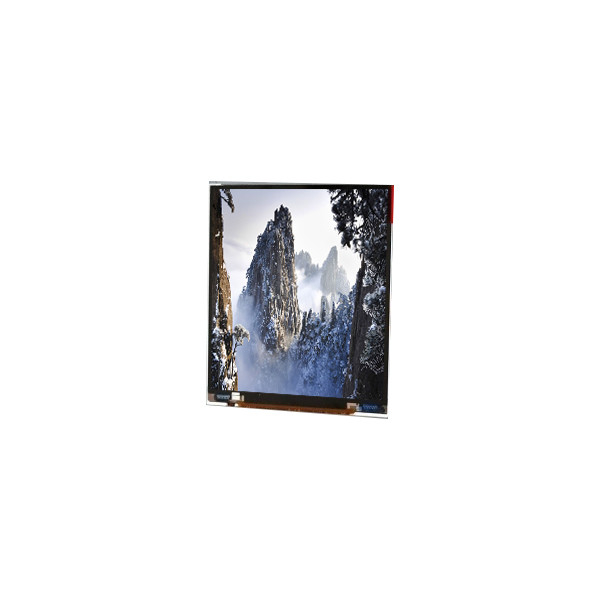

1080*1920 LPM055A409A 5.5 inch LCD Screen FOR Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM055A409A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM055A409A | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Used For: | Mobile Phone | Touch Screen: | PCAP, I²C |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode: | IPS, Normally Black, Transmissive |
Product Description
1080*1920 LPM055A409A 5.5 inch LCD Screen FOR Mobile Phone
LPM055A409A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM055A409A |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 71.664(W)×150.331(H) mm |
| Treatment | Hard coating |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 99%DCI-P3 |
| Light Source | WLED [5S2P], W/O Driver |
| Weight | 53.0g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | MIPI (4 data lanes), 40 pinsConnector |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/AVDD/AVEE) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LPM055A409A LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
LPM055A409A LCD Panel Shipping and Package :
LPM055A409A LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
LPM055A409A LCD Display Contact Us with Evidence :
We attach great importance to the shopping experience of every customer, and to this end, we promise to provide first-class products and services. However, due to transportation or other reasons, sometimes goods may be damaged during transportation. If you receive any damaged products or packaging, please contact us immediately and attach photo evidence of the damaged products and packaging. This will help us quickly and accurately assess the extent of damage and provide you with the best solution.
We attach great importance to customer feedback and comments on us, as it helps us to further improve and optimize our products and services. Therefore, if you have any questions or opinions about our products or services, please do not hesitate to contact us at any time. Our customer service representatives will do their best to solve any problems for you and ensure a pleasant and satisfactory shopping experience.
Finally, please rest assured when shopping. We will always provide you with high-quality products and services, and strive to improve our business to meet customer needs and expectations. Thank you for your trust and support.
LPM055A409A LCD Panel FAQ :
Q: Can You declare my order of LPM055A409A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LPM055A409A ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LPM055A409A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LPM055A409A ?
A: We accept T/T , Paypal , western union .
