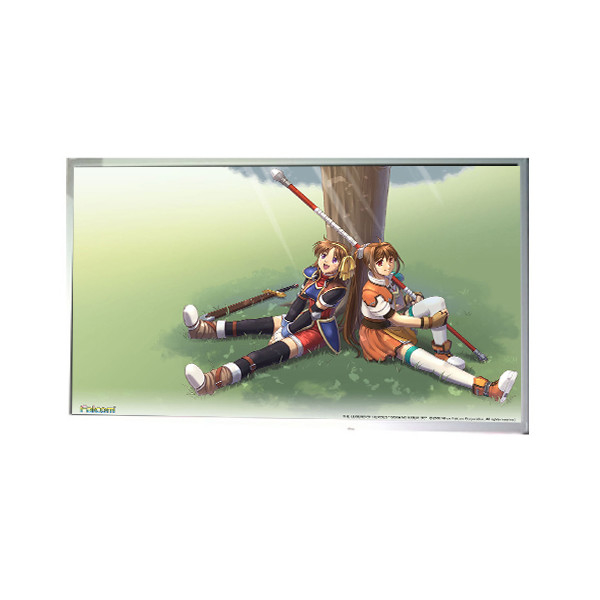

Name: LM215WF4-TJC1 21.5 inch 1920*1080 LCD Screen FOR Desktop Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LM215WF4-TJC1
Availability: InStock

Brand Name:	LG Display
Model Number:	LM215WF4-TJC1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM215WF4-TJC1

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.64(W)×268.11(H) Mm

Used For:

Desktop Monitor

Frame Rate:

60Hz

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LM215WF4-TJC1 21.5 inch 1920*1080 LCD Screen FOR Desktop Monitor

LM215WF4-TJC1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM215WF4-TJC1
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	-
Outline Dim.	488.14(H)×280.7(V)×1.69(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle	85/85/75/85 (Typ.)(CR＞10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.63+0.63 mm
Transmittance	-
Support Color	16.7M 98%sRGB
Light Source	No B/L, W/O Driver
Weight	520/550g (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 6 source chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LM215WF4-TJC1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

LM215WF4-TJC1 LCD Panel Shipping and Package :

LM215WF4-TJC1 21.5 inch 1920*1080 LCD Screen FOR Desktop Monitor 0

LM215WF4-TJC1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

LM215WF4-TJC1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

LM215WF4-TJC1 LCD Panel FAQ :

Q: How to order lcd panel LM215WF4-TJC1 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the LM215WF4-TJC1 before shipping ?

A: Of course , lcd screen LM215WF4-TJC1 was Strictly tested before shipping.

Q: What happen if the LM215WF4-TJC1 received can't work ?

A: LM215WF4-TJC1 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the LM215WF4-TJC1 ?

A: 90 days .
