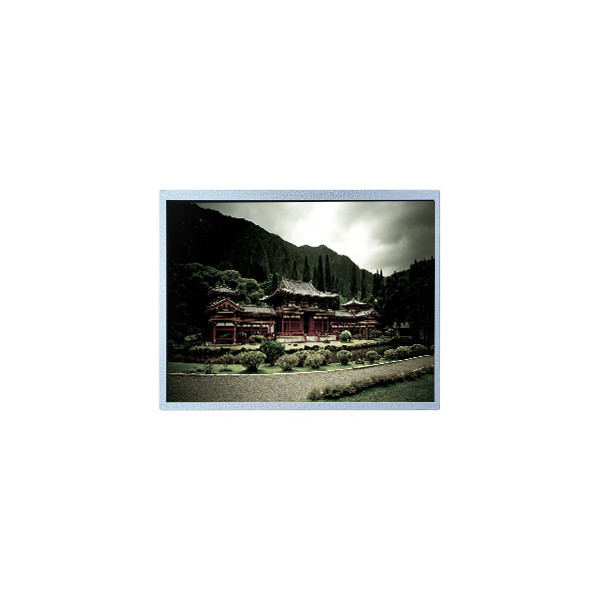

Name: 6.4 inch V16C6448AF 640*480 262K LCD Screen Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: V16C6448AF
Availability: InStock

Brand Name:	E Ink
Model Number:	V16C6448AF
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

V16C6448AF

Diagonal Size:

6.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 125PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

129.6(W)×97.44(H) Mm

Used For:

Industrial

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

6.4 inch V16C6448AF 640*480 262K LCD Screen Monitor

V16C6448AF LCD Panel Product details :

Brand	PVI
Model P/N	V16C6448AF
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	129.6(W)×97.44(H) mm
Bezel Opening	134.0(W)×101.0(H) mm
Outline Dim.	175(H)×126.5(V)×12.5(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	180:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	30/50 (Max.)(Tr/Td)
Viewing Angle	60/60/40/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [2 pcs], 20K hours, W/O Driver
Weight	335±10g
Designed For	Industrial
Frame Rate	-
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit), 31 pinsConnector
Power Supply	5.0V (Typ.)(VCC)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C
6.4 inch V16C6448AF 640*480 262K LCD Screen Monitor

V16C6448AF LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

V16C6448AF LCD Panel Shipping and Package :

6.4 inch V16C6448AF 640*480 262K LCD Screen Monitor 0

V16C6448AF LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

V16C6448AF LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

V16C6448AF LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd V16C6448AF ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order V16C6448AF ship?

A: The order are shipped within 1-2 working days after received the payment.
