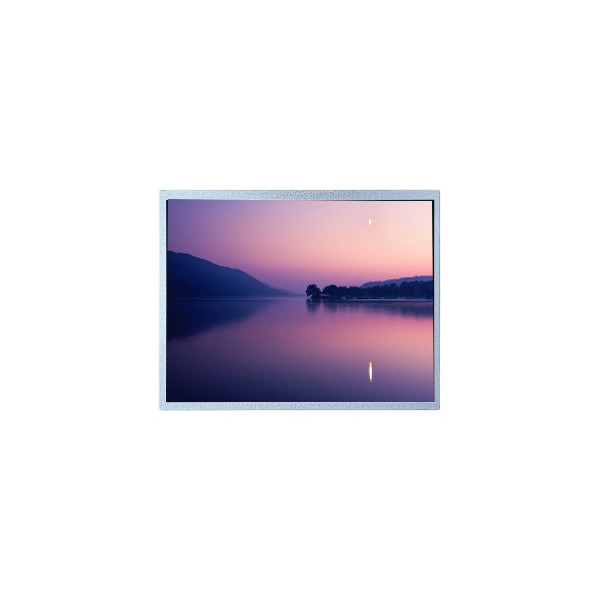

PW090XS9 9.0 inch 640*220 30 pins LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | E Ink |
| Model Number: | PW090XS9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PW090XS9 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×220 75PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 202.56(W)×105.27(H) Mm |
| Used For: | Automotive Display、Industrial | Frame Rate: | 60Hz |
Product Description
PW090XS9 9.0 inch 640*220 30 pins LCD Screen Display Panel
PW090XS9 LCD Panel Product details :
| Brand | PVI |
| Model P/N | PW090XS9 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×220 75PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 202.56(W)×105.27(H) mm |
| Bezel Opening | 205.2(W)×107.9(H) mm |
| Outline Size | 219.4(W)×120.8(H)×7.2(D) mm |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Display Colors | Full color |
| Lamp Type | 1 pcsCCFL, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 262±15g |
| Application | Automotive Display,Industrial |
| Signal Interface | TFT Specific Analog RGB, 30 pins FPC |
| Input Voltage | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Environment | Operating Temp.: -20 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C |
| PW090XS9 9.0 inch 640*220 30 pins LCD Screen Display Panel | |
PW090XS9 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
PW090XS9 LCD Panel Shipping and Package :
PW090XS9 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
PW090XS9 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
PW090XS9 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods PW090XS9 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of PW090XS9 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of PW090XS9 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
