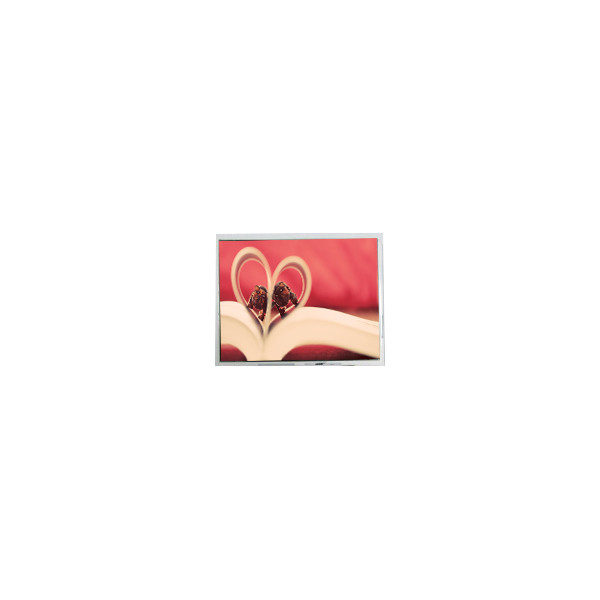

PM062WY1 6.2 inch 800*480 WLED 262K LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | E Ink |
Model Number: | PM062WY1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | PM062WY1 | Diagonal Size: | 6.2" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 150PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 137.4(W)×77.28(H) Mm |
Touch Panel: | Without | Designed For: | Industrial |
Product Description
PM062WY1 6.2 inch 800*480 WLED 262K LCD Screen Panel
PM062WY1 LCD Panel Product details :
Brand | PVI |
Model P/N | PM062WY1 |
Diagonal Size | 6.2" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×480, WVGA 150PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 137.4(W)×77.28(H) mm |
Bezel Opening | 140.7(W)×80.4(H) mm |
Outline Dim. | 155.2(W)×88.2(H)×5.2(D) mm |
Luminance | 400 cd/m² (Typ.) |
View Direction | 6 o'clock |
Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
Support Color | 262K/16.7M |
Weight | 117±10g |
Frame Rate | 60Hz |
Treatment | Antiglare |
Contrast Ratio | 500:1 (Typ.) (TM) |
Response Time | 10/15 (Typ.)(Tr/Td) |
Operating Mode | TN, Normally White, Transmissive |
Light Source | WLED [3S8P] , 20K hours , W/O Driver |
Designed For | Industrial |
Touch Panel | Without |
Interface Type | Parallel RGB (1 ch, 6/8-bit)60 pins FPC |
Power Supply | 3.3/10.0/22.7/7.4V (Typ.)(VCC/AVDD/VGH/VGL) |
Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
