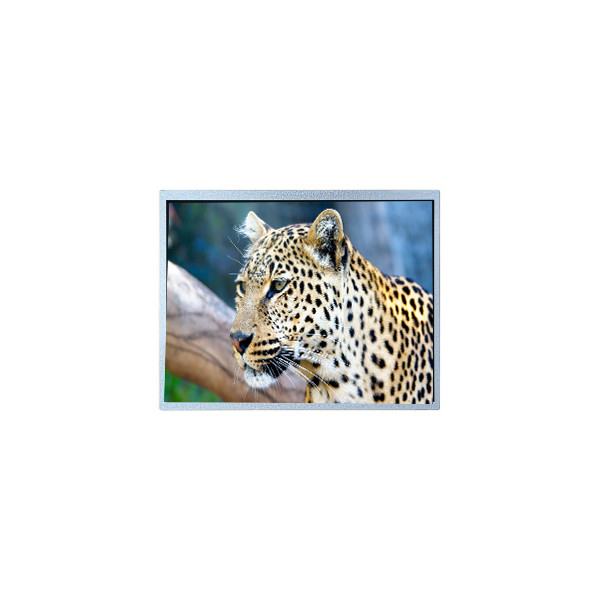

PD057VY1 5.7 inch 320*240 60Hz 30 pins LCD screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | E Ink |
| Model Number: | PD057VY1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PD057VY1 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Touchscreen: | Without | Designed For: | Industrial |
Product Description
PD057VY1 5.7 inch 320*240 60Hz 30 pins LCD screen Panel
PD057VY1 LCD Panel Product details :
| Brand | PVI |
| Model P/N | PD057VY1 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 120.28(W)×95.74(H)×1.2(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Good View at | - |
| Glass Thickness | 0.60+0.60 mm |
| Color Depth | 262K |
| Mass | 40.0±5.0g |
| Refresh Rate | 60Hz |
| Treatment | Without Polarizer |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 15/25 (Typ.)(Tr/Td) ms |
| Transmissivity | 7.5% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) + SPI, 30 pins FPC |
| Voltage Supply | 3.3/3.3/5.0/15/-10V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| PD057VY1 5.7 inch 320*240 60Hz 30 pins LCD screen Panel | |
