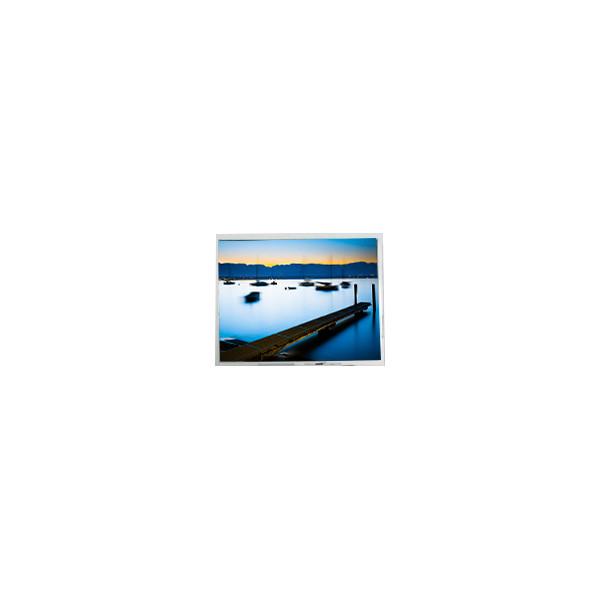

5.7 inch PD057VU1 320*240 60Hz LCD Screen Panel Display

All Category

Floor Standing Digital Signage

5.7 inch PD057VU1 320*240 60Hz LCD Screen Panel Display

Brand Name:	E Ink
Model Number:	PD057VU1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PD057VU1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Designed For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

5.7 inch PD057VU1 320*240 60Hz LCD Screen Panel Display

PD057VU1 LCD Panel Product details :

Brand	PVI
Model P/N	PD057VU1
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	117.2(W)×88.4(H) mm
Outline Dim.	144(W)×104.6(H)×13.3(D) mm
Luminance	500 cd/m² (Typ.)
View Direction	-
Viewing Angle	60/60/40/50 (Typ.)(CR≥10)
Support Color	262K
Weight	202±10g
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	15/25 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs] , 45K hours , W/O Driver
Designed For	Industrial
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit)33 pins Connector
Power Supply	3.3V (Typ.)(VCC)
Environment	Operating Temperature: -30 ~ 70 °C; Storage Temperature: -40 ~ 80 °C
