R213TFE-L53 LCD Screen Panel 21.3 Inch LCD Display Module

All Category

Floor Standing Digital Signage

R213TFE-L53 LCD Screen Panel 21.3 Inch LCD Display Module

Brand Name:	Innolux
Model Number:	R213TFE-L53
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

R213TFE-L53

Diagonal Size:

21.3"

Resolution:

2560(LCR)×2048, QSXGA 153PPI

Active Area:

422.4(W)×337.92(H) Mm

Bezel Opening:

426.4(W)×344.5(H) Mm

Outline(mm):

459.8(W)×375.3(H) ×30.5(D) Mm

Contrast Ratio:

1200:1 (Typ.) (TM)

Response Time:

15/10 (Typ.)(Tr/Td)

Application:

Medical Imaging

Signal Interface:

LVDS (4 Ch, 10-bit) , 90 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Highlight:

R213TFE-L53 LCD Screen Panel

21.3 inch LCD Display Module

21.3 inch LCD Screen Panel

Product Description

R213TFE-L53 LCD Screen Panel 21.3 inch LCD Display Module

R213TFE-L53 LCD Panel Product details :

Innolux LCD Screen R213TFE-L53
Brand	Innolux
Model P/N	R213TFE-L53
Diagonal Size	21.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(LCR)×2048, QSXGA 153PPI
Pixel Format	RGB Vertical Stripe
Active Area	422.4(W)×337.92(H) mm
Outline Size	459.8×375.3×30.5 (H×V×D)
Bezel Opening	426.4(W)×344.5(H) mm
Treatment	Antiglare
Brightness	1200 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥20)
Operating Mode	AAS, Normally Black, Transmissive
Display Colors	Grayscale
Weight	3.46±0.05Kgs
Response Time	15/10 (Typ.)(Tr/Td) ms
Lamp Type	WLED , 50K hours , With LED Driver
Designed For	Medical Imaging
Frame Rate	60Hz
Interface Type	LVDS (4 ch, 10-bit) , 90 pins Connector
Power Supply	12.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
R213TFE-L53 LCD Screen Panel 21.3 inch LCD Display Module

R213TFE-L53 LCD Screen Item Description :

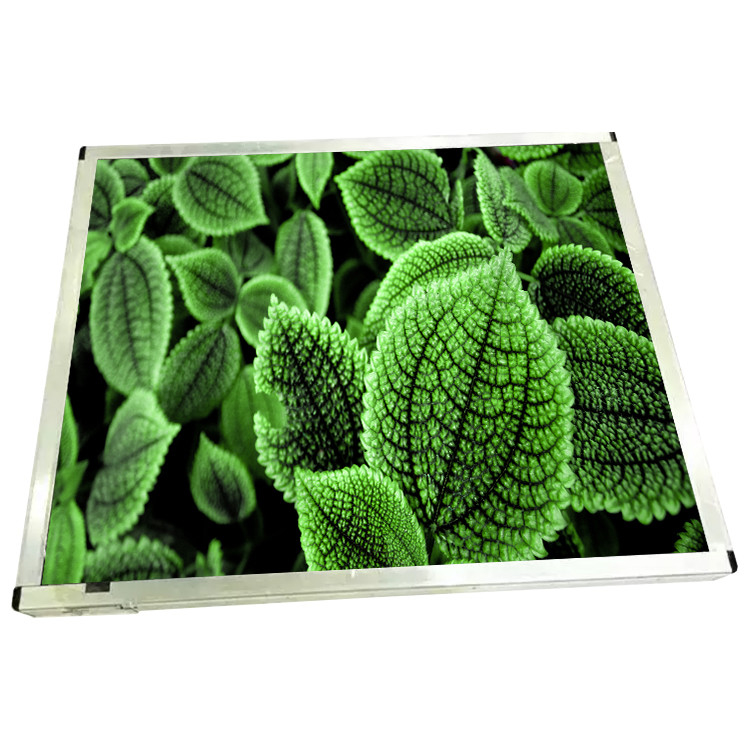

R213TFE-L53 LCD Screen Panel 21.3 Inch LCD Display Module 0

R213TFE-L53 LCD Panel Packing :

Outer Packing

Strong Carton Box: The outer packing consists of a robust and durable carton box. This sturdy outer layer is designed to withstand the rigors of transportation, ensuring that the contents remain secure and protected from external impacts.

Inner Packing

Protective Foam: Inside the carton box, the LCD panel is encased in high-quality foam. This inner packing provides additional cushioning, safeguarding the panel from shocks, vibrations, and any potential damage during transit.

Overall Packing Quality

Strength and Safety: The combination of a strong carton and protective foam ensures that the packing is both strong and safe. This dual-layer protection is specifically designed to prevent the LCD panel from getting broken or damaged while being shipped to you.

Benefits of Our Packing Method

Minimized Risk of Damage: Our meticulous packing process minimizes the risk of damage, giving you peace of mind that your product will arrive in excellent condition.

Enhanced Security: The robust packing materials and careful assembly provide enhanced security against the common hazards associated with shipping and handling.

R213TFE-L53 LCD Panel Summary of Shipping Process:

Model Verification: Confirm the exact model needed before placing your order.

Address Verification: Double-check the shipping address and notify us immediately of any changes.

Timely Shipping: Expect shipment within 3 business days post-payment.

Quality Checks: Rest assured, each panel is tested and securely packed.

Reliable Shipping: Choose from trusted carriers like EMS, DHL, and UPS for delivery.

R213TFE-L53 LCD Panel Reminder :

Customs Taxes and Fees

Please be aware that the price of the R213TFE-L53 LCD Panel, as listed, does not include any customs taxes or fees that may be applicable in the destination country.

Customs Clearance

When your order arrives at the destination country's customs, there may be additional charges for customs clearance. These charges are determined by the laws and regulations of the destination country and can vary widely depending on the specific policies in place.

Responsibility for Customs Charges

It is the responsibility of the buyer to be informed about and cover any customs taxes or fees that may be imposed upon arrival of the goods in the destination country. The necessity and amount of these charges depend entirely on the local customs authorities and the legal framework governing imports in your country.

Recommendations

Check Local Regulations: We strongly recommend that you check with your local customs office or visit their official website to understand the potential taxes or fees that may apply to your purchase.

Prepare for Payment: Be prepared to make any necessary payments for customs clearance to avoid delays in receiving your order.

Keep Documentation Ready: Ensure you have all the required documentation ready for a smooth customs clearance process.

R213TFE-L53 LCD Panel FAQ :

Q: When would you ship,IF I order R213TFE-L53 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
