Industrial LCD Panel Display

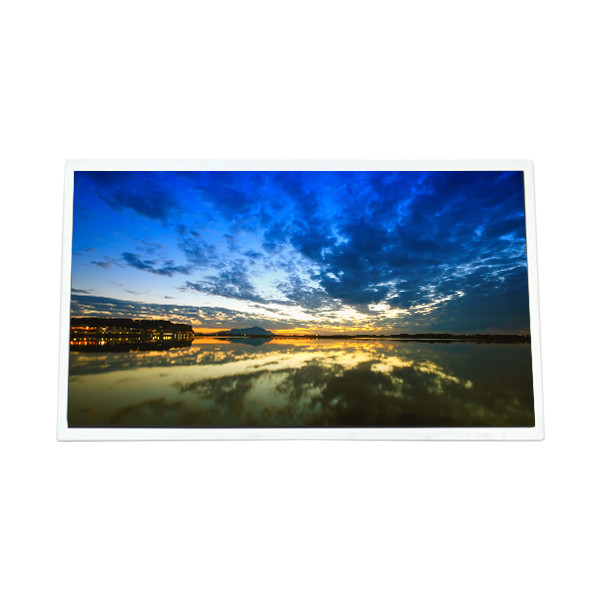

720*1280 P070CCB-DB0 7.0 inch 1000:1 Touch LCD Screen Panel

All Category

Floor Standing Digital Signage

720*1280 P070CCB-DB0 7.0 inch 1000:1 Touch LCD Screen Panel

Brand Name:	Innolux
Model Number:	P070CCB-DB0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P070CCB-DB0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

720(RGB)×1280, WXGA 209PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

87.264(W)×155.136(H) Mm

Touchscreen:

Without

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Highlight:

7.0 inch Touch LCD Screen Panel

1000:1 Touch LCD Screen Panel

P070CCB-DB0 Touch LCD Screen Panel

Product Description

720*1280 P070CCB-DB0 7.0 inch 1000:1 Touch LCD Screen Panel

P070CCB-DB0 LCD Panel Product details :

Brand	Innolux
Model P/N	P070CCB-DB0
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	720(RGB)×1280, WXGA 209PPI
Pixel Format	RGB Vertical Stripe
Active Area	87.264(W)×155.136(H) mm
Bezel Opening	-
Outline Dim.	101.86(H)×188.26(V)×5.66(D) mm
Treatment	-
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Operating Mode	-
Support Color	16.7M 60%NTSC
Light Source	WLED [6S3P], 15K hours, W/O Driver
Weight	115g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	MIPI (4 data lanes), 39 pinsConnector
Power Supply	1.8/3.3V (Typ.)(VDDI/VCI)
Environment	Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
720*1280 P070CCB-DB0 7.0 inch 1000:1 Touch LCD Screen Panel

P070CCB-DB0 LCD Screen Report Item :

Product Overview:

We specialize in the sale of industrial LCD panels and touch screens, offering a wide range of products and technical support. Our inventory includes LCD screens and touch screens from 5.7 inches to 42 inches, suitable for numerous industrial purposes.

Product Information and Services:

Comprehensive Product Information: We provide detailed product information for all types of LCD screens and touch screens, including specifications, features, and compatibility.

Technical Consultation: Our team of experts is available to offer technical consultations, helping you select the right screen for your specific needs and ensuring optimal performance.

Stock and Availability:

Our extensive stock ranges from 5.7 inches to 42 inches, catering to various industrial requirements. Whether you need a display for vehicles, medical equipment, injection molding machines, or other industrial equipment, we have the right solution for you.

Why Choose Us:

Extensive Inventory: A wide range of sizes and specifications to meet diverse industrial needs.

Expert Support: Professional technical consultation to guide you through the selection process.

Quality Assurance: High-quality products designed for durability and reliability in industrial applications.

P070CCB-DB0 LCD Panel Shipping and Package :

720*1280 P070CCB-DB0 7.0 inch 1000:1 Touch LCD Screen Panel 0

P070CCB-DB0 LCD Screen Shipment Information :

Worldwide Shipping:

We provide global shipping to ensure our products reach customers no matter where they are located.

Standard Shipping by DHL:

Delivery Time: Your order will be shipped via DHL and will typically arrive within 3-7 days.

Customs Fees: Please note that depending on your country's customs policies, additional duty fees may apply.

Expedited Service: DHL offers fast and reliable delivery to most destinations worldwide.

Economical Shipping by HK Post:

Lower Fees: For customers looking to minimize shipping costs and avoid customs fees, we offer the option to ship via Hong Kong Post.

Delivery Time: Shipments via HK Post usually take 15-20 days to arrive.

Customs Handling: Inform us if you prefer this option, and we will assist you in arranging it.

Customs and Import Fees:

Responsibility: Please be aware that we are not responsible for any import fees, remote area charges, taxes, or other customs-related fees that may apply to your shipment.

Policy Awareness: It is the buyer's responsibility to understand their country's customs policies and potential fees before placing an order.

P070CCB-DB0 LCD Screen Refund & Return Policy :

Defective Items:

If you receive a defective item, please notify us within 3 days of receiving your order. We will work with you to resolve the issue promptly.

Return Conditions:

Items should be returned in their original packaging whenever possible to ensure they are protected during transit and to facilitate the return process.

Shipping Considerations:

China Post Air Mail: Please note that due to regional weather conditions and other factors, delivery times for China Post Air Mail can range from 10 to 50 days. We appreciate your patience if you choose this shipping method.

P070CCB-DB0 LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel P070CCB-DB0 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
