products details

Home > Products >

Industrial LCD Panel Display

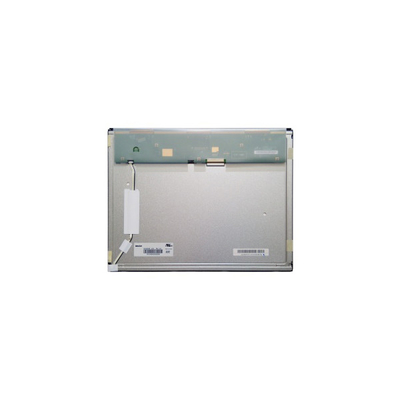

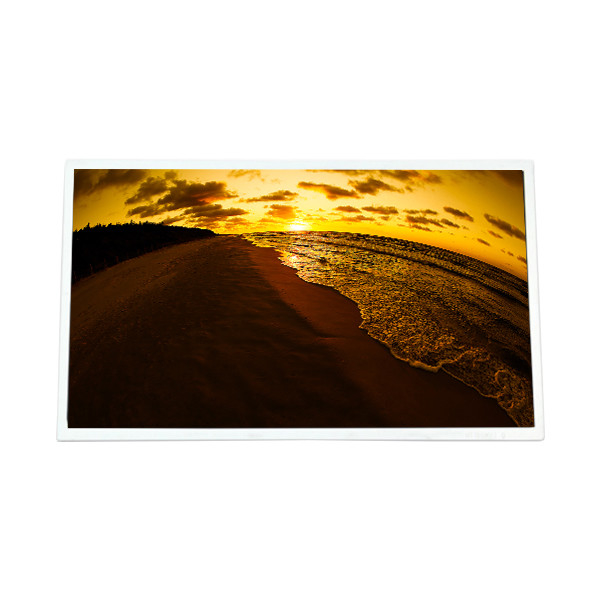

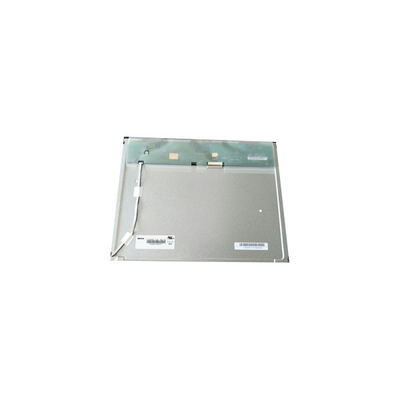

15.0 inch G150XGE-L04 Rev.C4 1024*768 60Hz LCD Screen Monitor

All Category

Floor Standing Digital Signage

15.0 inch G150XGE-L04 Rev.C4 1024*768 60Hz LCD Screen Monitor

Brand Name:	Innolux
Model Number:	G150XGE-L04 Rev.C4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G150XGE-L04 Rev.C4

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Used For:

Industrial

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Highlight:

60Hz LCD Screen Monitor

15.0 inch LCD Screen Monitor

1024*768 LCD Screen Monitor

Product Description

15.0 inch G150XGE-L04 Rev.C4 1024*768 60Hz LCD Screen Monitor

G150XGE-L04 Rev.C4 LCD Panel Product details :

Brand	Innolux
Model P/N	G150XGE-L04 Rev.C4
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	307.4(W)×231.3(H) mm
Outline Size	326.5(W)×253.5(H)×12(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Best View on	-
Display Colors	262K/16.2M 55%NTSC
Frequency	60Hz
Weight	1.08/1.13Kgs (Typ./Max.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	700:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	5/11 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Application	Industrial
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 85 °C
15.0 inch G150XGE-L04 Rev.C4 1024*768 60Hz LCD Screen Monitor

G150XGE-L04 Rev.C4 LCD Screen Pre-Order Information :

Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.

Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.

By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.

G150XGE-L04 Rev.C4 LCD Panel Shipping and Package :

G150XGE-L04 Rev.C4 LCD Screen Shipping Information :

Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.

Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.

Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.

G150XGE-L04 Rev.C4 LCD Screen Service :

Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.

Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.

Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.

G150XGE-L04 Rev.C4 LCD Panel FAQ :

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: When would you ship,IF I order G150XGE-L04 Rev.C4 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.
