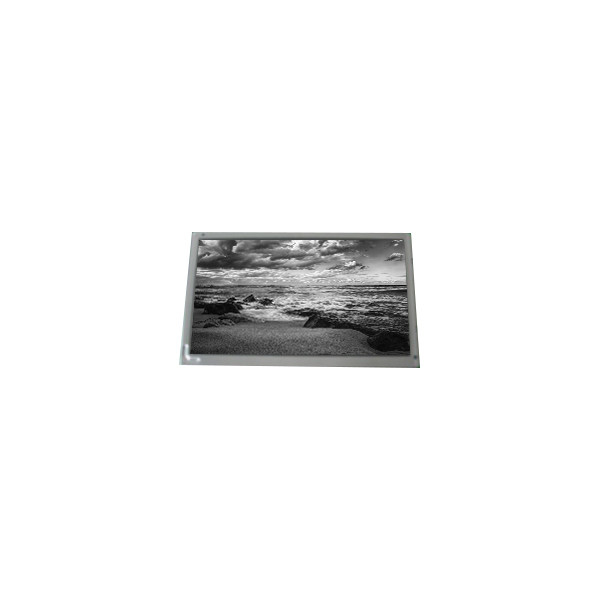

10.1 inch 1280*800 G101ICE-LH2 800:1 LCD Screen FOR Outdoor High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G101ICE-LH2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G101ICE-LH2 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
| Used For: | Industrial、Outdoor High Brightness | Touchscreen: | Without |
| Highlight: | 10.1 inch LCD Screen,G101ICE-LH2 LCD Screen,Outdoor High Brightness LCD Screen |
||
Product Description
10.1 inch 1280*800 G101ICE-LH2 800:1 LCD Screen FOR Outdoor High Brightness
G101ICE-LH2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | G101ICE-LH2 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 218.96(W)×137.6(H) mm |
| Outline Size | 230.7(W)×152.55(H)×7(D) mm |
| Brightness | 1200 cd/m² (Typ.) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M |
| Frequency | 60Hz |
| Weight | TBD |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Touch Screen | Without |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 85 °C |
| 10.1 inch 1280*800 G101ICE-LH2 800:1 LCD Screen FOR Outdoor High Brightness | |
G101ICE-LH2 LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
G101ICE-LH2 LCD Panel Shipping and Package :
G101ICE-LH2 LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
G101ICE-LH2 LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
G101ICE-LH2 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of G101ICE-LH2 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel G101ICE-LH2 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
