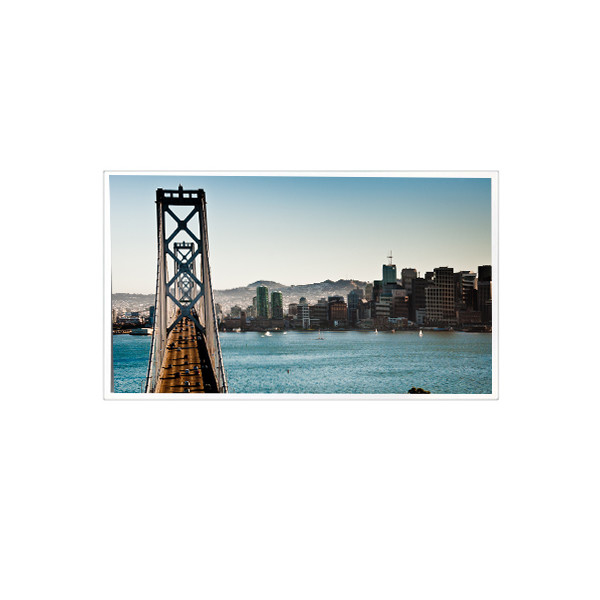

QV101WUM-N65 10.1 inch 1920*1200 LCD Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | QV101WUM-N65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | QV101WUM-N65 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.806(W)×135.504(H) Mm |
| Touch Screen: | Without | Designed For: | Industrial |
Product Description
QV101WUM-N65 10.1 inch 1920*1200 LCD Screen for Industrial
QV101WUM-N65 LCD Panel Product details :
| Brand | BOE |
| Model P/N | QV101WUM-N65 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.806(W)×135.504(H) mm |
| Bezel Opening | - |
| Outline Dim. | 229.2(H)×149.8(V)×6.5(D) mm |
| Treatment | Hard coating |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [9S5P], 15K hours, W/O Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 34 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
| QV101WUM-N65 10.1 inch 1920*1200 LCD Screen for Industrial | |
QV101WUM-N65 LCD Panel Shipping and Package :
QV101WUM-N65 LCD Panel FAQ :
Q: What happen if the lcd panel QV101WUM-N65 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order QV101WUM-N65 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
