Industrial LCD Panel Display

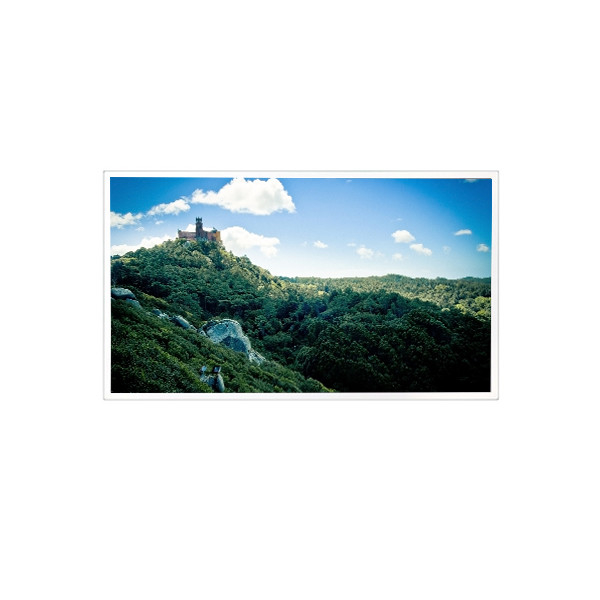

10.4 inch 1024*768 RV104X0M-N01 900 cd/m2 LCD Screen Display

All Category

Floor Standing Digital Signage

10.4 inch 1024*768 RV104X0M-N01 900 cd/m2 LCD Screen Display

Brand Name:	BOE
Model Number:	RV104X0M-N01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

RV104X0M-N01

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

210.432(W)×157.824(H) Mm

Touch Screen:

Without

Designed For:

Industrial、Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

10.4 inch 1024*768 RV104X0M-N01 900 cd/m2 LCD Screen Display

RV104X0M-N01 LCD Panel Product details :

Brand	BOE
Model P/N	RV104X0M-N01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.432(W)×157.824(H) mm
Bezel Opening	-
Outline(mm)	235 × 173× 10.5 (H×V×D)
Treatment	Hard coating (3H)
Luminance	900 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25 (Max.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	8S4PWLED, 30K hours, No Driver
Mass	500g (Max.)
Used for	Industrial,Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -55 ~ 85 °C Operating Temp.: -40 ~ 80 °C
10.4 inch 1024*768 RV104X0M-N01 900 cd/m2 LCD Screen Display

RV104X0M-N01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

RV104X0M-N01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

RV104X0M-N01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

RV104X0M-N01 LCD Panel Shipping and Package :

10.4 inch 1024*768 RV104X0M-N01 900 cd/m2 LCD Screen Display 0

RV104X0M-N01 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order RV104X0M-N01 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel RV104X0M-N01 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
