LCD Screen Display Panel

5.8 inch 800*480 TM058JFHG01 LCD Screen for Projector

All Category

Floor Standing Digital Signage

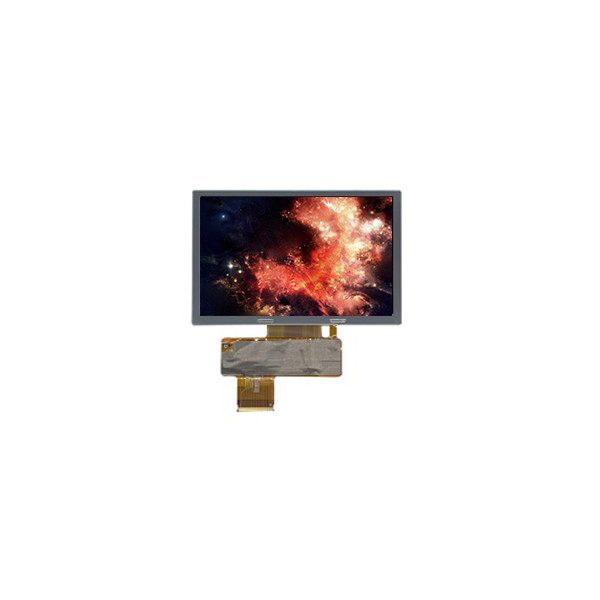

5.8 inch 800*480 TM058JFHG01 LCD Screen for Projector

Brand Name:	TIANMA
Model Number:	TM058JFHG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM058JFHG01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1280(RGB)×768, WXGA 257PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

126.72(W)×74.88(H) Mm

Glass Thickness:

0.50+0.50 Mm

Designed For:

Projector

Work Mode:

TN, Normally White, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

5.8 inch 800*480 TM058JFHG01 LCD Screen for Projector

TM058JFHG01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM058JFHG01
Diagonal Size	5.8"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1280(RGB)×768, WXGA 257PPI
Pixel Format	RGB Vertical Stripe
Active Area	126.72(W)×74.88(H) mm
Bezel Opening	-
Outline (mm)	137.49×84.7×1.27 (H×V×D)
Treatment	Clear
Luminance	0 cd/m²
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	45/45/20/50 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	-
Color Depth	262K 41%NTSC
Backlight	No B/L
Mass	TBD
Used for	Projector
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Suggest COG HX82863 + HX86951
Signal Type	Mini LVDS, FPC60 pins
Voltage Supply	3.3/10.9/20/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TM058JFHG01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

TM058JFHG01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

TM058JFHG01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

TM058JFHG01 LCD Panel Shipping and Package :

5.8 inch 800*480 TM058JFHG01 LCD Screen for Projector 0

TM058JFHG01 LCD Panel FAQ :

Q: How can I trace my order of TM058JFHG01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of TM058JFHG01 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of TM058JFHG01 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TM058JFHG01 ?

A: Of course!If you make a large order, we will give you a discount.
