Industrial LCD Panel Display

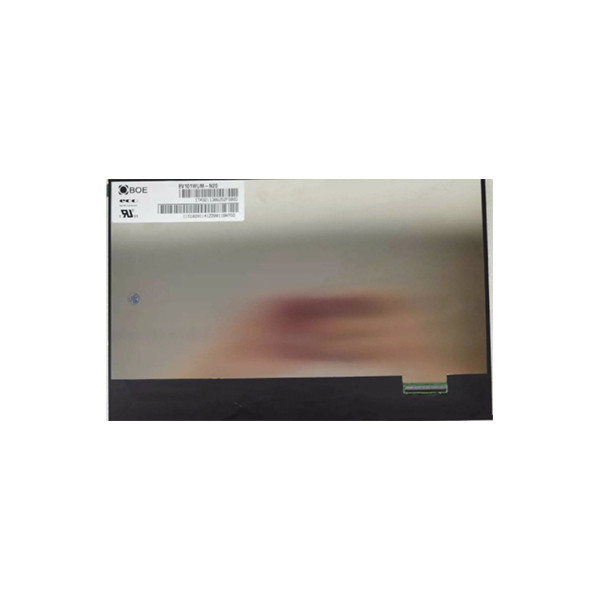

EV101WUB-N80 10.1 inch 1920*1200 16.7M 72% NTSC LCD Panel

All Category

Floor Standing Digital Signage

EV101WUB-N80 10.1 inch 1920*1200 16.7M 72% NTSC LCD Panel

Brand Name:	BOE
Model Number:	EV101WUB-N80
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

EV101WUB-N80

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1200, WUXGA 224PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

216.806(W)×135.504(H) Mm

Touch Panel:

Without

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

EV101WUB-N80 10.1 inch 1920*1200 16.7M 72% NTSC LCD Panel

EV101WUB-N80 LCD Panel Product details :

BOE LCD SCREEN
manufacturer	BOE
Model P/N	EV101WUB-N80
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1200, WUXGA 224PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.806(W)×135.504(H) mm
Bezel Opening	-
Outline Size	221.81(W)×145.5(H) ×1(D) mm
Surface	Hard coating
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Glass Depth	0.40+0.40 mm
Transmissivity	5.5% (Typ.)(with APCF)
Display Colors	16.7M 72% NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Weight	120g (Typ.)
Application	Industrial
Signal Interface	LVDS (2 ch, 8-bit) , 45 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
EV101WUB-N80 10.1 inch 1920*1200 16.7M 72% NTSC LCD Panel

EV101WUB-N80 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

EV101WUB-N80 LCD Panel Shipping and Package :

EV101WUB-N80 10.1 inch 1920*1200 16.7M 72% NTSC LCD Panel 0

EV101WUB-N80 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

EV101WUB-N80 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

EV101WUB-N80 LCD Panel FAQ :

Q: How can I trace my order of EV101WUB-N80 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of EV101WUB-N80 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of EV101WUB-N80 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods EV101WUB-N80 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
