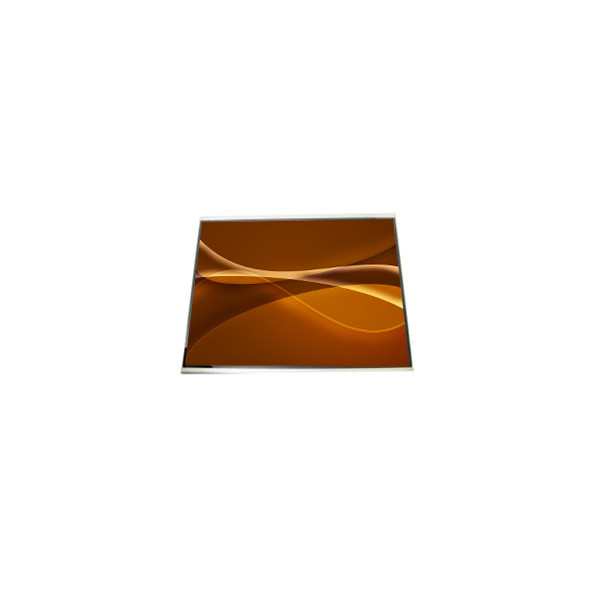

HSD052BHW1-C00-T00 5.2 inch LCD Panel Display FOR Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD052BHW1-C00-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD052BHW1-C00-T00 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 282PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.8(W)×115.2(H) Mm |
| Used For: | Mobile Phone | Touch Screen: | PCAP, I²C |
| Work Mode: | IPS Pro, Normally Black, Transmissive | Glass Thickness: | 0.25+0.25 Mm |
Product Description
HSD052BHW1-C00-T00 5.2 inch LCD Panel Display FOR Mobile Phone
HSD052BHW1-C00-T00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD052BHW1-C00-T00 |
| Diagonal Size | 5.2" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×115.2(H) mm |
| Bezel Opening | - |
| Outline(mm) | 66.8 × 121.2× 0.5 (H×V×D) |
| Treatment | With Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 14/16 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | 3.42% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | PCAP, I²C |
| Driver IC list | Suggest COG OTM1284A, OTM1289A, HX8394F, ILI9881C, R61350 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
