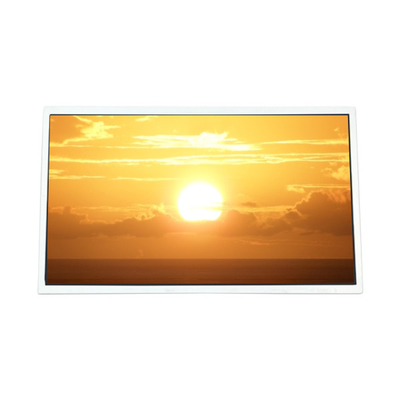

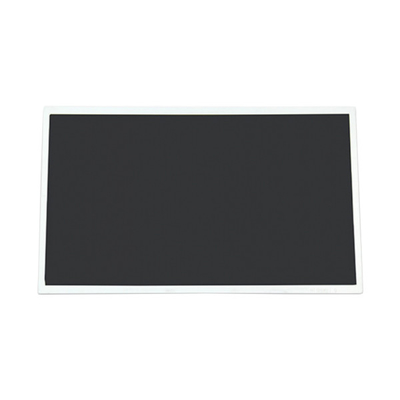

23.8 inch 1920*1080 MV238FHM-N40 LCD Panel Screen for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N40 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Used For: | Desktop Monitor | Light Source: | WLED [3 Strings], 30K Hours, W/O Driver |
| Frame Rate: | 60Hz | Interface Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
23.8 inch 1920*1080 MV238FHM-N40 LCD Panel Screen for Desktop Monitor
MV238FHM-N40 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHM-N40 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 535(H)×313(V)×13.2(D) mm |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [3 strings], 30K hours, W/O Driver |
| Weight | 2.20Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
At our company, we are committed to providing exceptional customer service for all of our valued clients. If you have any questions or concerns about the delivery of your LCD screen, we are here to help. Our dedicated customer support team is always available to assist you in any way possible, whether it is to answer questions about your order status or to resolve any issues that may arise during the shipping process.
We take pride in our ability to provide fast and reliable service, and we understand that sometimes things can go wrong. If you experience any challenges with your delivery, we encourage you to contact us right away so that we can work quickly to find a solution. Our goal is to ensure your complete satisfaction with your purchase, from start to finish.
We believe that open communication is key to successful customer service, so please don't hesitate to reach out to us with any questions or concerns you may have. We are happy to provide regular updates on the status of your shipment and to address any issues promptly and professionally. Your satisfaction is our top priority, and we are committed to delivering a positive shopping experience for each and every one of our customers.
ISO 13406-2 Dead Pixel Norm:
Our LCD screens adhere to the ISO 13406-2 standard regarding dead pixels. According to this norm, 2-5 dead pixels are considered acceptable. Dead pixels are pixels that do not function properly and appear as small, often black or white dots on the screen. If the number of dead pixels falls within the 2-5 range, it is within the acceptable limits defined by the ISO standard.
MV238FHM-N40 LCD Panel Shipping and Package :
MV238FHM-N40 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods MV238FHM-N40 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity MV238FHM-N40 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods MV238FHM-N40 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment MV238FHM-N40 ?
A: We accept T/T , Paypal , western union .
