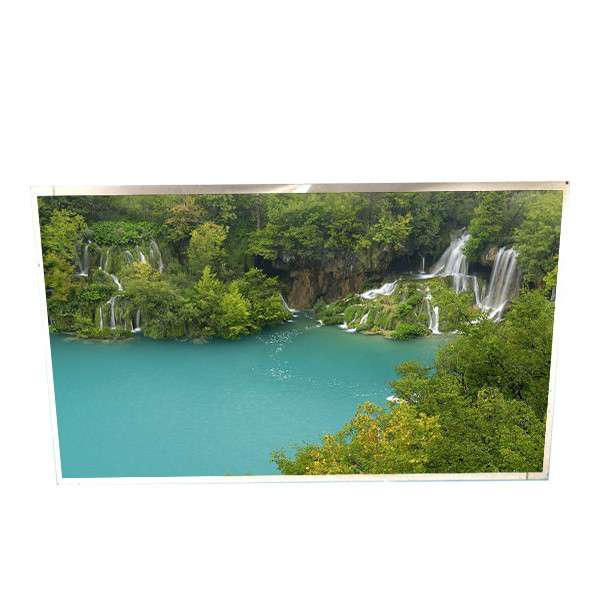

B116XAK01.0 HW0A 11.6 inch 1366*768 LCD Display FOR Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAK01.0 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAK01.0 HW0A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Used For: | Laptop | Light Source: | WLED , 15K Hours , With LED Driver |
| Treatment: | Glare (Haze 0%), Hard Coating (3H) | Luminance: | 250 Cd/m² (Typ.) |
Product Description
B116XAK01.0 HW0A 11.6 inch 1366*768 LCD Display FOR Laptop
B116XAK01.0 HW0A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XAK01.0 HW0A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 278(W)×168.02(H) ×3.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
B116XAK01.0 HW0A LCD Panel Shipping and Package :
We value our customers and want to ensure that you have a positive experience shopping with us. If you have any questions or concerns about your order, please do not hesitate to contact us. Our customer service team is available to answer any questions you may have and provide you with updates on your package.
You can reach us through our website or by email, and we will respond to your inquiry as soon as possible. We strive to provide excellent customer service and will work with you to resolve any issues related to your order.
We appreciate your business and look forward to serving you again in the future. Thank you for choosing our company and trusting us with your purchase.
B116XAK01.0 HW0A LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of B116XAK01.0 HW0A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B116XAK01.0 HW0A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of B116XAK01.0 HW0A ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
