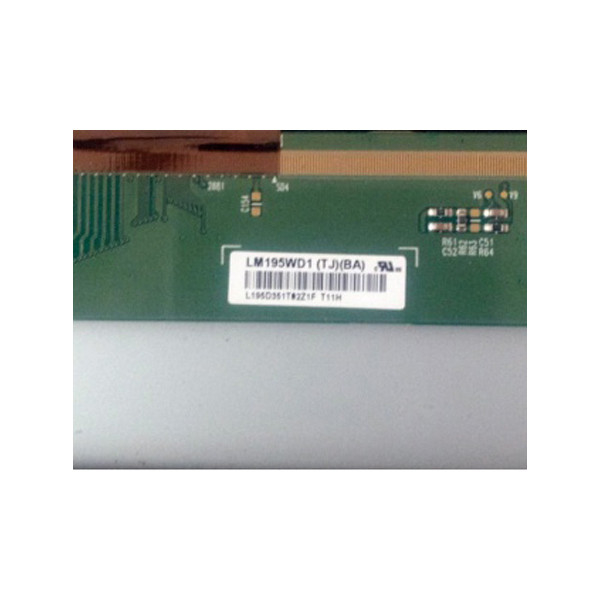

LM195WD1-TJBA 19.5 inch 1600*900 LCD Screen Panel

Brand Name:	LG
Model Number:	LM195WD1-TJBA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM195WD1-TJBA

Diagonal Size:

19.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1600(RGB)×900, HD+ 94PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

433.92(W)×236.34(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 72%NTSC

Frequency:

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LM195WD1-TJBA 19.5 inch 1600*900 LCD Screen Panel

LM195WD1-TJBA LCD Panel Product details :

Brand	LG Display
Model P/N	LM195WD1-TJBA
Diagonal Size	19.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1600(RGB)×900, HD+ 94PPI
Pixel Format	RGB Vertical Stripe
Active Area	433.92(W)×236.34(H) mm
Bezel Opening	-
Outline(mm)	444.92 × 244.74× 1.43 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	1.3/3.7 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.11% (Typ.)(with Polarizer)
Color Depth	16.7M 72%NTSC
Backlight	No B/L, No Driver
Mass	343g (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COF 5 source chips
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM195WD1-TJBA 19.5 inch 1600*900 LCD Screen Panel

LM195WD1-TJBA LCD Screen Item Description :

Product Overview:

The LM195WD1-TJBA LCD Screen is a high-quality display solution designed to meet your various needs. Our inventory is well-stocked, ensuring that you have access to a wide range of models to suit your specific requirements.

Availability:

We maintain ample stock of the LM195WD1-TJBA LCD Screen and offer a variety of models to choose from. Whether you need a single unit or a bulk order, we are prepared to fulfill your needs promptly and efficiently.

Custom Orders and Inquiries:

If you require different models or larger quantities than what is listed, please do not hesitate to reach out. We are committed to providing personalized service to accommodate your unique needs. You can send me a message directly with your specifications and requirements.

Customer Support:

I am available online all day to assist you. Whether you have questions about the product, need help placing an order, or require additional information, feel free to contact me at any time. Your satisfaction is our top priority, and we are here to ensure you have a seamless purchasing experience.

LM195WD1-TJBA LCD Screen Payment Information :

Accepted Payment Methods:

We strive to make your purchasing experience as convenient and secure as possible. For your convenience, we accept the following payment methods:

ALI Payment Options: All payment methods available through ALI are accepted. These include, but are not limited to:

Alipay

Credit/Debit Cards

Bank Transfers

PayPal (where applicable through ALI)

Alternative Payment Methods:

If you prefer to use a different payment method not listed above, please contact us directly. We are flexible and willing to accommodate alternative payment arrangements to suit your preferences. Simply send us a message with your preferred payment method, and we will do our best to facilitate it.

Our goal is to provide a smooth and secure payment process for our customers.

LM195WD1-TJBA LCD Panel Shipping and Package :

LM195WD1-TJBA 19.5 inch 1600*900 LCD Screen Panel 0

LM195WD1-TJBA LCD Screen Guarantee and Return Policy :

Guarantee for All Products:

We are committed to ensuring the quality and functionality of our products. Every LM195WD1-TJBA LCD Screen is thoroughly inspected and tested before shipment to ensure it meets our high standards. If you encounter any issues, please contact us, and we will assist you in resolving them.

Shipping Costs for Returns:

If you need to return a defective or non-defective item, please note that the shipping costs will be the responsibility of the buyer. We recommend using a trackable shipping method to ensure the safe return of your item.

Condition of Returned Items:

All returned items must be in the same condition as when they were originally sent to you. This means the items should not be damaged, altered, or show signs of use. To ensure a smooth return process, please handle the items with care.

Approval and Original Packaging:

Returned items are subject to inspection and approval by our team. To be eligible for a return, the item must be returned in its original packaging, including all accessories, manuals, and other components that were included in the shipment. The original box should be intact and undamaged.

Reporting Damaged Items:

If you receive a damaged item, it is important to report it to us within 2 days of receipt. Please provide detailed information and, if possible, include photographs of the damage. This will help us process your claim more efficiently and provide a prompt resolution.

Non-Seller Error Returns:

For returns that are not due to seller error, such as changes of mind or incorrect purchases, please be aware that shipping and handling charges are non-refundable. The cost of return shipping will also be borne by the buyer.

LM195WD1-TJBA LCD Panel FAQ :

Q: How to order LG LM195WD1-TJBA ?

A: We accept the T/T , Western union , paypal .

Q: Can you declared low value for my order TFT-LCD LM195WD1-TJBA when shipping?

A: Yes, We can do it for you if you need.

Q: What happen if the LCD Screen LM195WD1-TJBA I received can't work ?

A: Our LG LM195WD1-TJBA was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: can you declared low price of my LG lcd panel LM195WD1-TJBA when shipping?

A: Yes , please inform us the value you want .
