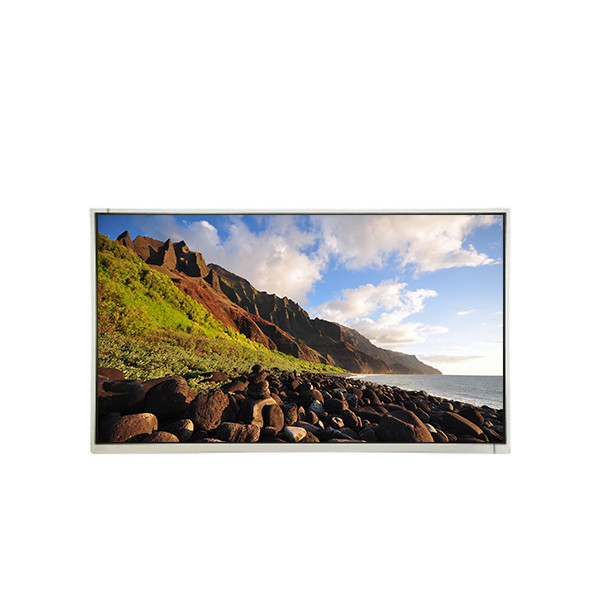

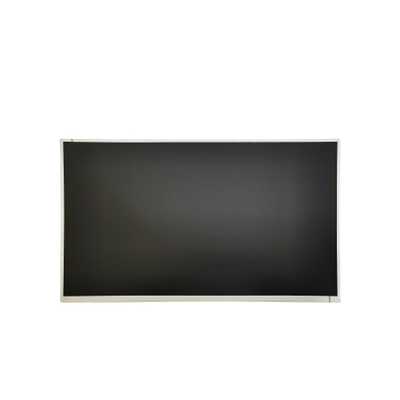

1920*1080 M238HVN01.1 CELL 23.8 inch LCD Screen for Desktop Monitor

Brand Name:	AUO
Model Number:	M238HVN01.1 CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HVN01.1 CELL

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Outline Size:

534.04(W)×308.16(H)×1.36(D) Mm

Surface:

Antiglare, Hard Coating (3H)

Contrast Ratio:

3000:1 (Typ.) (TM)

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

1920*1080 M238HVN01.1 CELL 23.8 inch LCD Screen for Desktop Monitor

M238HVN01.1 CELL LCD Panel Product details :

Brand	AUO
Model P/N	M238HVN01.1 CELL
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Size	534.04(W)×308.16(H)×1.36(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	3000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	VA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	10/16 (Typ.)(Tr/Td)
Glass Depth	0.50+0.50 mm
Transmissivity	4.3% (Typ.)(with Polarizer)
Display Colors	16.7M 72%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COF Built-in 6 source chips
Panel Weight	496g (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M238HVN01.1 CELL LCD Screen Report Item :

Product Overview:

We specialize in the sale of industrial LCD panels and touch screens, offering a wide range of products and technical support. Our inventory includes LCD screens and touch screens from 5.7 inches to 42 inches, suitable for numerous industrial purposes.

Product Information and Services:

Comprehensive Product Information: We provide detailed product information for all types of LCD screens and touch screens, including specifications, features, and compatibility.

Technical Consultation: Our team of experts is available to offer technical consultations, helping you select the right screen for your specific needs and ensuring optimal performance.

Stock and Availability:

Our extensive stock ranges from 5.7 inches to 42 inches, catering to various industrial requirements. Whether you need a display for vehicles, medical equipment, injection molding machines, or other industrial equipment, we have the right solution for you.

Why Choose Us:

Extensive Inventory: A wide range of sizes and specifications to meet diverse industrial needs.

Expert Support: Professional technical consultation to guide you through the selection process.

Quality Assurance: High-quality products designed for durability and reliability in industrial applications.

M238HVN01.1 CELL LCD Panel Shipping and Package :

1920*1080 M238HVN01.1 CELL 23.8 inch LCD Screen for Desktop Monitor 0

M238HVN01.1 CELL LCD Screen Shipment Information :

Worldwide Shipping:

We provide global shipping to ensure our products reach customers no matter where they are located.

Standard Shipping by DHL:

Delivery Time: Your order will be shipped via DHL and will typically arrive within 3-7 days.

Customs Fees: Please note that depending on your country's customs policies, additional duty fees may apply.

Expedited Service: DHL offers fast and reliable delivery to most destinations worldwide.

Economical Shipping by HK Post:

Lower Fees: For customers looking to minimize shipping costs and avoid customs fees, we offer the option to ship via Hong Kong Post.

Delivery Time: Shipments via HK Post usually take 15-20 days to arrive.

Customs Handling: Inform us if you prefer this option, and we will assist you in arranging it.

Customs and Import Fees:

Responsibility: Please be aware that we are not responsible for any import fees, remote area charges, taxes, or other customs-related fees that may apply to your shipment.

Policy Awareness: It is the buyer's responsibility to understand their country's customs policies and potential fees before placing an order.

M238HVN01.1 CELL LCD Screen Refund & Return Policy :

Defective Items:

If you receive a defective item, please notify us within 3 days of receiving your order. We will work with you to resolve the issue promptly.

Return Conditions:

Items should be returned in their original packaging whenever possible to ensure they are protected during transit and to facilitate the return process.

Shipping Considerations:

China Post Air Mail: Please note that due to regional weather conditions and other factors, delivery times for China Post Air Mail can range from 10 to 50 days. We appreciate your patience if you choose this shipping method.

M238HVN01.1 CELL LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of M238HVN01.1 CELL ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M238HVN01.1 CELL ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of M238HVN01.1 CELL ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of M238HVN01.1 CELL ?

A: Of course!sample order is welcome !
