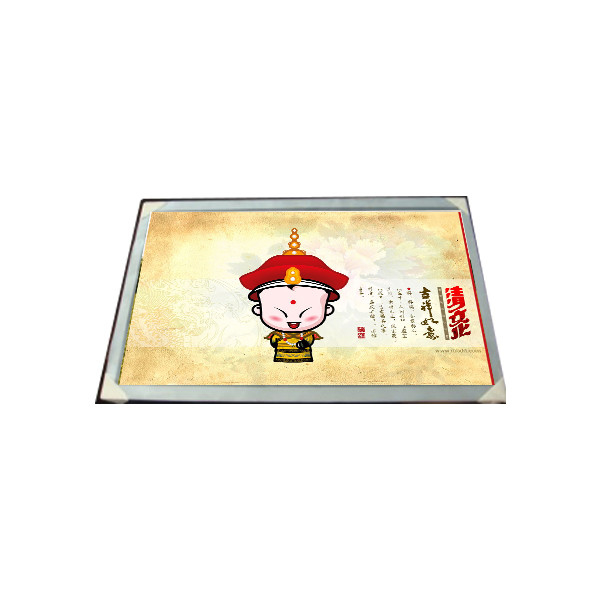

LM185WH1-TLF5 18.5 inch 16.7M LCD Screen Panel

Brand Name:	LG
Model Number:	LM185WH1-TLF5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLF5

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

409.8(W)×230.4(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 72%NTSC

Frequency:

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLF5 18.5 inch 16.7M LCD Screen Panel

LM185WH1-TLF5 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLF5
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.4(W)×254.6(H)×13.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.1/3.9 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	2 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.37/1.44Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM185WH1-TLF5 18.5 inch 16.7M LCD Screen Panel

LM185WH1-TLF5 LCD Screen Item Description :

Product Overview:

The LM185WH1-TLF5 LCD Screen is a high-quality display solution designed to meet your various needs. Our inventory is well-stocked, ensuring that you have access to a wide range of models to suit your specific requirements.

Availability:

We maintain ample stock of the LM185WH1-TLF5 LCD Screen and offer a variety of models to choose from. Whether you need a single unit or a bulk order, we are prepared to fulfill your needs promptly and efficiently.

Custom Orders and Inquiries:

If you require different models or larger quantities than what is listed, please do not hesitate to reach out. We are committed to providing personalized service to accommodate your unique needs. You can send me a message directly with your specifications and requirements.

Customer Support:

I am available online all day to assist you. Whether you have questions about the product, need help placing an order, or require additional information, feel free to contact me at any time. Your satisfaction is our top priority, and we are here to ensure you have a seamless purchasing experience.

LM185WH1-TLF5 LCD Screen Payment Information :

Accepted Payment Methods:

We strive to make your purchasing experience as convenient and secure as possible. For your convenience, we accept the following payment methods:

ALI Payment Options: All payment methods available through ALI are accepted. These include, but are not limited to:

Alipay

Credit/Debit Cards

Bank Transfers

PayPal (where applicable through ALI)

Alternative Payment Methods:

If you prefer to use a different payment method not listed above, please contact us directly. We are flexible and willing to accommodate alternative payment arrangements to suit your preferences. Simply send us a message with your preferred payment method, and we will do our best to facilitate it.

Our goal is to provide a smooth and secure payment process for our customers.

LM185WH1-TLF5 LCD Panel Shipping and Package :

LM185WH1-TLF5 18.5 inch 16.7M LCD Screen Panel 0

LM185WH1-TLF5 LCD Screen Guarantee and Return Policy :

Guarantee for All Products:

We are committed to ensuring the quality and functionality of our products. Every LM185WH1-TLF5 LCD Screen is thoroughly inspected and tested before shipment to ensure it meets our high standards. If you encounter any issues, please contact us, and we will assist you in resolving them.

Shipping Costs for Returns:

If you need to return a defective or non-defective item, please note that the shipping costs will be the responsibility of the buyer. We recommend using a trackable shipping method to ensure the safe return of your item.

Condition of Returned Items:

All returned items must be in the same condition as when they were originally sent to you. This means the items should not be damaged, altered, or show signs of use. To ensure a smooth return process, please handle the items with care.

Approval and Original Packaging:

Returned items are subject to inspection and approval by our team. To be eligible for a return, the item must be returned in its original packaging, including all accessories, manuals, and other components that were included in the shipment. The original box should be intact and undamaged.

Reporting Damaged Items:

If you receive a damaged item, it is important to report it to us within 2 days of receipt. Please provide detailed information and, if possible, include photographs of the damage. This will help us process your claim more efficiently and provide a prompt resolution.

Non-Seller Error Returns:

For returns that are not due to seller error, such as changes of mind or incorrect purchases, please be aware that shipping and handling charges are non-refundable. The cost of return shipping will also be borne by the buyer.

LM185WH1-TLF5 LCD Panel FAQ :

Q: How long is the warranty of LM185WH1-TLF5 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM185WH1-TLF5 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM185WH1-TLF5 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order LM185WH1-TLF5 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
