LCD Screen Display Panel

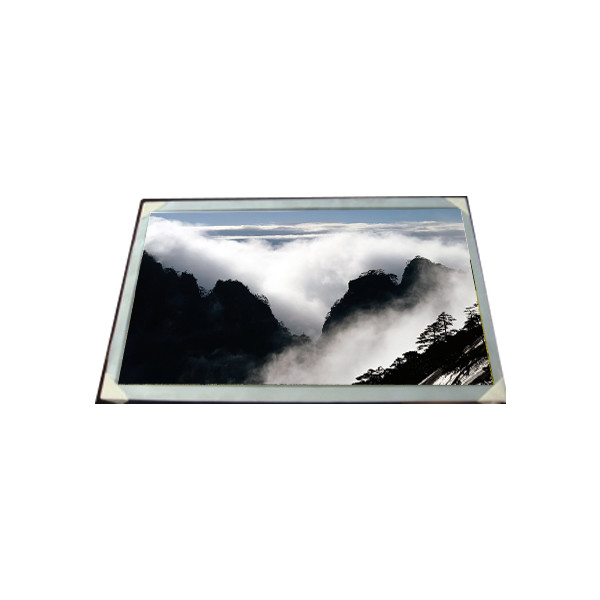

LM185WH1-TLC3 18.5 inch CCFL LCD Panel Module

All Category

Floor Standing Digital Signage

LM185WH1-TLC3 18.5 inch CCFL LCD Panel Module

Brand Name:	LG
Model Number:	LM185WH1-TLC3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLC3

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

409.8(W)×230.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Color Depth:

16.7M 72%NTSC

Refresh Rate:

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLC3 18.5 inch CCFL LCD Panel Module

LM185WH1-TLC3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLC3
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	-
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	5 (Typ.)(Tr+Td)
Display Colors	16.7M 72%NTSC
Lamp Type	CCFL
Frequency	60Hz
Touch Screen	Without
Panel Weight	-
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit) Connector
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM185WH1-TLC3 18.5 inch CCFL LCD Panel Module

LM185WH1-TLC3 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LM185WH1-TLC3 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LM185WH1-TLC3 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LM185WH1-TLC3 LCD Panel Shipping and Package :

LM185WH1-TLC3 LCD Panel FAQ :

Q: How can I trace my order of LM185WH1-TLC3 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of LM185WH1-TLC3 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of LM185WH1-TLC3 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of LM185WH1-TLC3 ?

A: Of course!If you make a large order, we will give you a discount.
