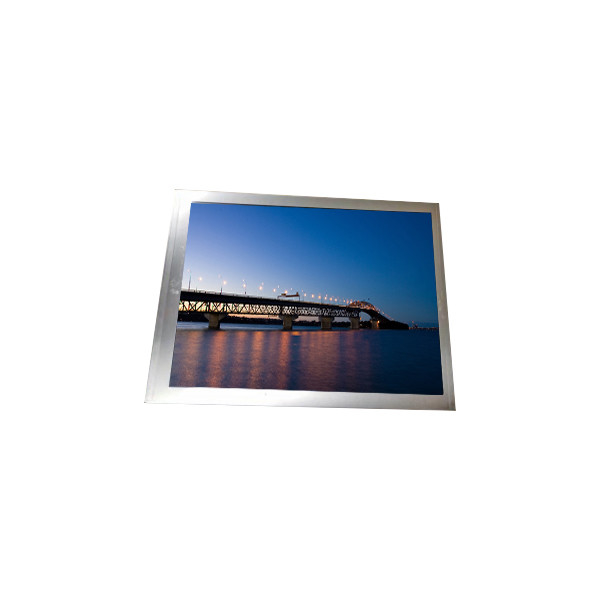

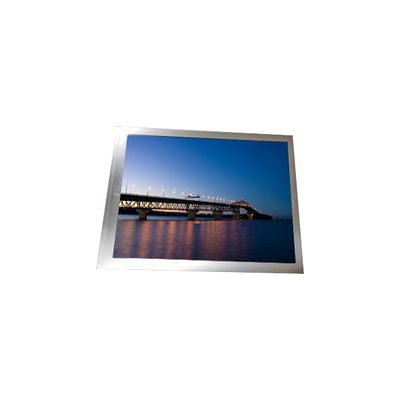

Original B116XAN06.1 HW3A 11.6 inch LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAN06.1 HW3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAN06.1 HW3A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Designed For: | Laptop | Outline Shape: | Slim (PCBA Flat, T≤3.2mm) |
| Interface Type: | EDP (1 Lane) , EDP1.2 , Connector 30 Pins | Power Supply: | 3.3V (Typ.) |
Product Description
Original B116XAN06.1 HW3A 11.6 inch LCD Panel Screen
B116XAN06.1 HW3A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XAN06.1 HW3A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 278×168×3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B116XAN06.1 HW3A LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
B116XAN06.1 HW3A LCD Panel Shipping and Package :
B116XAN06.1 HW3A LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
B116XAN06.1 HW3A LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
B116XAN06.1 HW3A LCD Panel FAQ :
Q: How to make payment of B116XAN06.1 HW3A ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of B116XAN06.1 HW3A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B116XAN06.1 HW3A ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods B116XAN06.1 HW3A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
