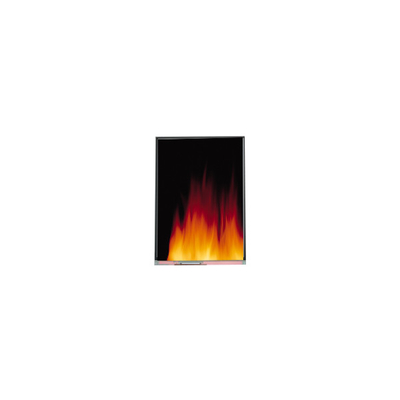

6.5 inch LX065A1BB03 720*1600 LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LX065A1BB03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LX065A1BB03 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1600 269PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 67.932(W)×150.96(H) Mm |
| Outline Size: | 69.832(W)×155.81(H)×0.32(D) Mm | Surface: | Without Polarizer |
| Brightness: | 0 Cd/m² | Application: | Mobile Phone |
Product Description
6.5 inch LX065A1BB03 720*1600 LCD Panel Screen
LX065A1BB03 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LX065A1BB03 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1600 269PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.932(W)×150.96(H) mm |
| Bezel Opening | - |
| Outline Size | 69.832(W)×155.81(H)×0.32(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | New Mode2, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.16+0.16 mm |
| Transmissivity | 3.6% (Typ.) |
| Display Colors | 71%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch |
| Driver IC | COGSuggest NT36525B |
| Panel Weight | 8.70g (Typ.) |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| LX065A1BB03 Discount 6.5 inch LCD Display Arduino Touch | |
LX065A1BB03 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
LX065A1BB03 LCD Panel Shipping and Package :
LX065A1BB03 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
LX065A1BB03 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
LX065A1BB03 LCD Panel FAQ :
Q: How can I trace my order of LX065A1BB03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LX065A1BB03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LX065A1BB03 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LX065A1BB03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
