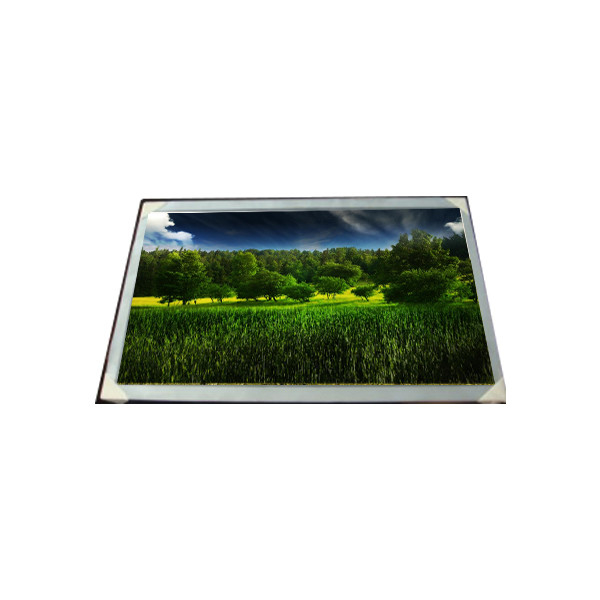

LM170E01-A5NH 17.0 inch LCD Panel Module for Desktop Monitor

Brand Name:	LG
Model Number:	LM170E01-A5NH
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM170E01-A5NH

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

337.92(W)×270.336(H) Mm

Work Mode:

TN, Normally White, Transmissive

Color Depth:

16.2M 72%NTSC

Refresh Rate:

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LM170E01-A5NH 17.0 inch LCD Panel Module for Desktop Monitor

LM170E01-A5NH LCD Panel Product details :

Brand	LG Display
Model P/N	LM170E01-A5NH
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline Size	358.5(W)×296.5(H)×17.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	4/12 (Typ.)(Tr/Td)
Display Colors	16.2M 72%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.89/1.94Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM170E01-A5NH 17.0 inch LCD Panel Module for Desktop Monitor

LM170E01-A5NH LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LM170E01-A5NH LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LM170E01-A5NH LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LM170E01-A5NH LCD Panel Shipping and Package :

LM170E01-A5NH LCD Panel FAQ :

Q: How long will I receive my goods LM170E01-A5NH ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of LM170E01-A5NH ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LM170E01-A5NH?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
