LCD Screen Display Panel

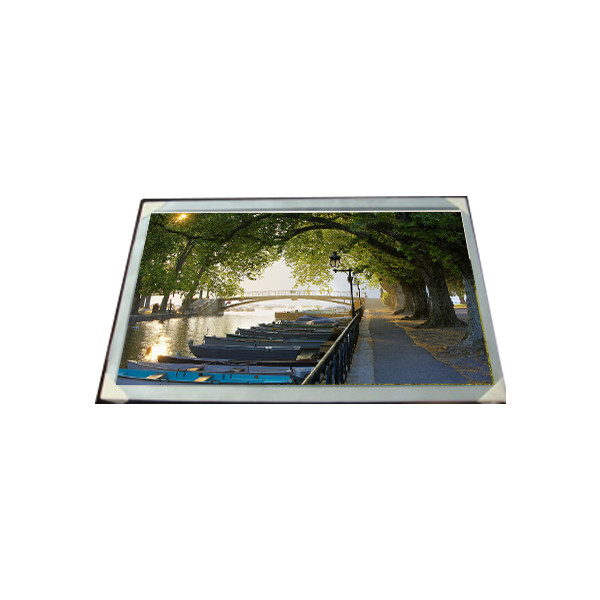

LM170E01-A5D4 17.0 inch LCD Panel Module 1280*1024 LCD Display Screen

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

LM170E01-A5D4 17.0 inch LCD Panel Module 1280*1024 LCD Display Screen

Brand Name:	LG
Model Number:	LM170E01-A5D4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM170E01-A5D4

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

337.92(W)×270.336(H) Mm

Work Mode:

TN, Normally White, Transmissive

Color Depth:

16.2M 72%NTSC

Refresh Rate:

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LM170E01-A5D4 17.0 inch LCD Panel Module 1280*1024 LCD Display Screen

LM170E01-A5D4 LCD Panel Product details :

Brand	LG Display
Model P/N	LM170E01-A5D4
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline Size	358.5(W)×296.5(H)×17.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	450 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Response	4/12 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.2M 72%NTSC
Backlight	4 pcsCCFL, 50K hours, No Driver
Mass	1.89/1.94Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM170E01-A5D4 17.0 inch LCD Panel Module 1280*1024 LCD Display Screen

LM170E01-A5D4 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LM170E01-A5D4 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LM170E01-A5D4 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LM170E01-A5D4 LCD Panel Shipping and Package :

LM170E01-A5D4 LCD Panel FAQ :

Q: How do you ship my goods LM170E01-A5D4 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LM170E01-A5D4 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel LG LM170E01-A5D4 at a very low value ?

A: Yes , we can . pls inform us before shipping .
