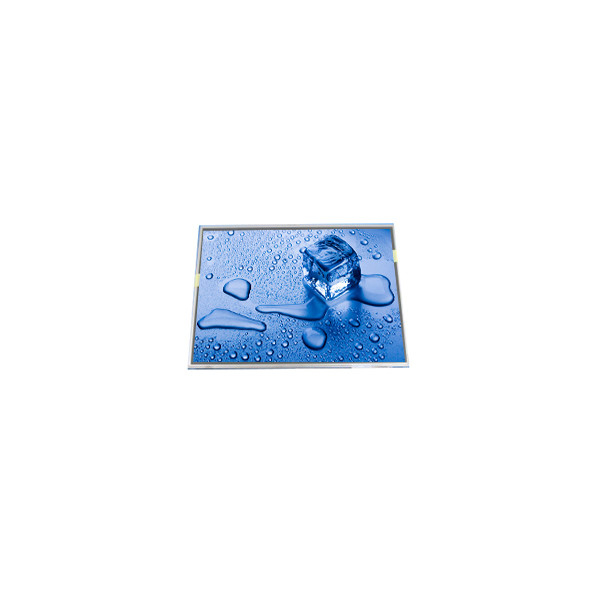

New 2880*1920 LAM123GX51 12.3 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LAM123GX51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LAM123GX51 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 2880(RGB)×1920 282PPI |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Laptop |
| Form Style: | Slim (PCBA Bent, T≤3.0mm) | Frame Rate: | 60Hz |
| Treatment: | Glare (Haze 0%), Hard Coating (3H) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
Product Description
New 2880*1920 LAM123GX51 12.3 inch LCD Display Screen
LAM123GX51 LCD Panel Product details :
| Brand | JDI |
| Model P/N | LAM123GX51 |
| Diagonal Size | 12.3" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2880(RGB)×1920 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 259.2(W)×172.8(H) mm |
| Bezel Opening | - |
| Outline Dim. | 263.2(W)×184.1(H)×4.7(D) mm |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 71% NTSC |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED, 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.4a, HBR1 (2.7G/lane)40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
