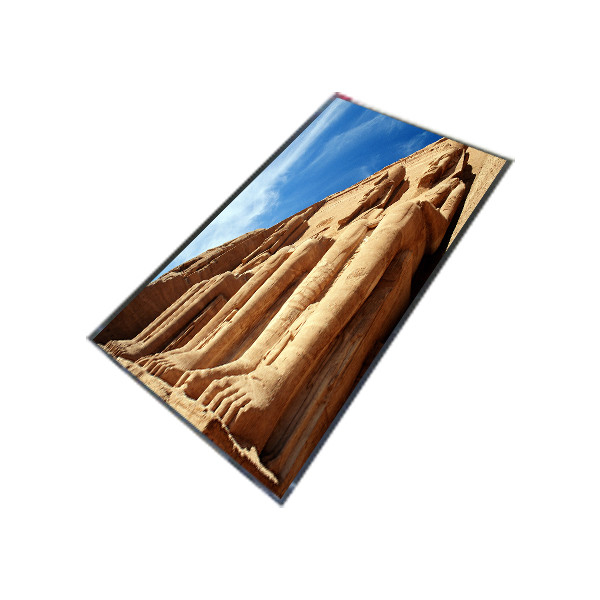

LH620WF1-SD01 6.2 inch 1080*2160 Touch LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LH620WF1-SD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LH620WF1-SD01 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1080(RGB)×2160 389PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 70.47(W)×140.94(H) Mm |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Color Depth: | 16.7M 85%NTSC |
| Good View At: | Symmetry | Designed For: | Mobile Phone |
Product Description
LH620WF1-SD01 6.2 inch 1080*2160 Touch LCD Screen Display
LH620WF1-SD01 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LH620WF1-SD01 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1080(RGB)×2160 389PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.47(W)×140.94(H) mm |
| Bezel Opening | - |
| Outline Size | 75.05(W)×157.45(H) mm |
| Brightness | 450 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 85%NTSC |
| Frequency | 60Hz |
| Weight | 37.0g (Typ.) |
| Surface | Hard coating |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | - |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | 9S2P WLED, Without Driver |
| Touch Screen | PCAP, I²C |
| Application | Mobile Phone |
| Signal Interface | MIPI (4 data lanes), 40 pinsConnector |
| Input Voltage | 1.8/5.2/-5.2V (Typ.)(VDDI/DDVDH/DDVDL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| LH620WF1-SD01 6.2 inch 1080*2160 Touch LCD Screen Display | |
LH620WF1-SD01 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LH620WF1-SD01 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LH620WF1-SD01 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LH620WF1-SD01 LCD Panel Shipping and Package :
LH620WF1-SD01 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of LH620WF1-SD01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LH620WF1-SD01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LH620WF1-SD01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
