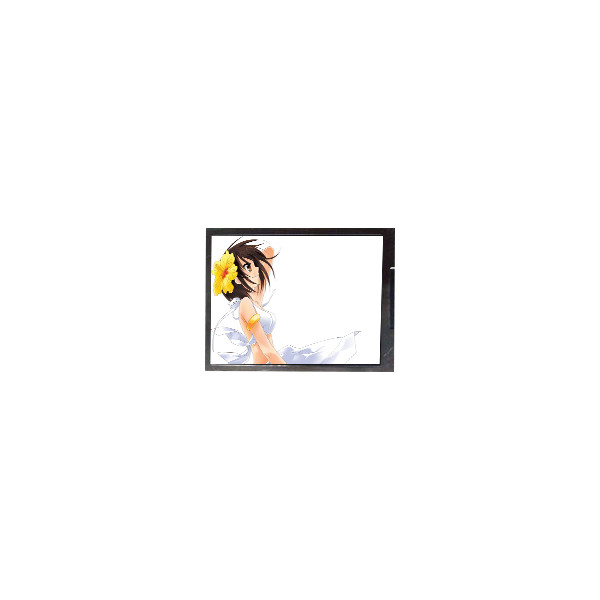

Original F050A04-601 5.0 inch 800*480 LCD Panel for Portable Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F050A04-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F050A04-601 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 800(RGB)×480, WVGA 188PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 108(W)×64.8(H) Mm |
| Used For: | Portable Navigation、MID UMPC、MP3 PMP、Gaming | Backlight: | No B/L |
| Response: | 25 (Typ.)(Tr+Td) Ms | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
Product Description
Original F050A04-601 5.0 inch 800*480 LCD Panel for Portable Navigation
F050A04-601 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F050A04-601 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | - |
| Outline(mm) | 115.6 × 74.38× 1 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.48% (Typ.) |
| Color Depth | 16.7M 49%NTSC |
| Backlight | No B/L |
| Mass | 233g (Typ.) |
| Used for | Portable Navigation,MID UMPC,MP3 PMP,Gaming |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG ILI6137+ILI5960 |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
F050A04-601 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
F050A04-601 LCD Panel Shipping and Package :
F050A04-601 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
F050A04-601 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
F050A04-601 LCD Panel FAQ :
Q: When would you ship,IF I order F050A04-601 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order F050A04-601 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: Can you test lcd panel F050A04-601 before shipping?
A: Don't Worry , The F050A04-601 will be tested ok before shipping.
Q: What happen if F050A04-601 received can't work ?
A: Our F050A04-601 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Want to Know more details about this product
