products details

Home > Products >

LCD Laptop Screen

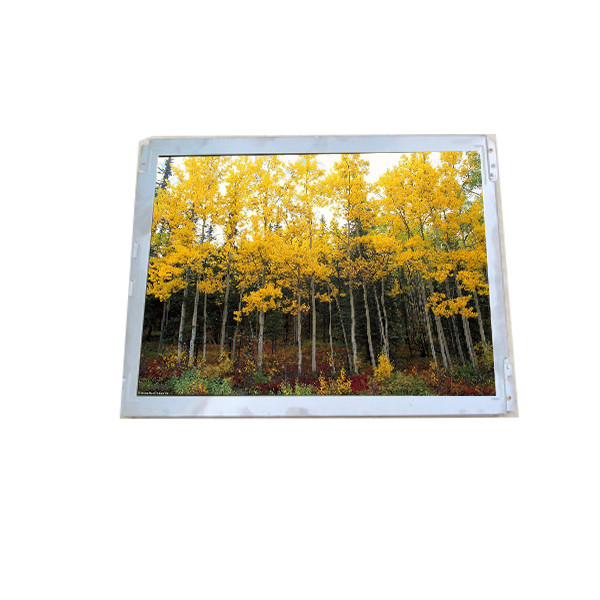

B156XTK02.0 HW4A 15.6 inch 1366*768 LCD Display Screen Panel

All Category

Floor Standing Digital Signage

B156XTK02.0 HW4A 15.6 inch 1366*768 LCD Display Screen Panel

Brand Name:	AUO
Model Number:	B156XTK02.0 HW4A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156XTK02.0 HW4A

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Outline Dim.:

350.66(H)×216.15(V)×3.2(D) Mm

Treatment:

Glare (Haze 0%)

Contrast Ratio:

500:1 (Typ.) (TM)

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B156XTK02.0 HW4A 15.6 inch 1366*768 LCD Display Screen Panel

B156XTK02.0 HW4A LCD Panel Product details :

Brand	AUO
Model P/N	B156XTK02.0 HW4A
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Outline Dim.	350.66(H)×216.15(V)×3.2(D) mm
Treatment	Glare (Haze 0%)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 45% NTSC
Light Source	WLED , 15K hours , With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C
Interface Type	eDP (1 Lane) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

B156XTK02.0 HW4A LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

B156XTK02.0 HW4A LCD Panel Shipping and Package :

B156XTK02.0 HW4A 15.6 inch 1366*768 LCD Display Screen Panel 0

B156XTK02.0 HW4A LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

B156XTK02.0 HW4A LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

B156XTK02.0 HW4A LCD Panel FAQ :

Q: How can I trace my order of B156XTK02.0 HW4A ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of B156XTK02.0 HW4A ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of B156XTK02.0 HW4A ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of B156XTK02.0 HW4A ?

A: Of course!If you make a large order, we will give you a discount.
