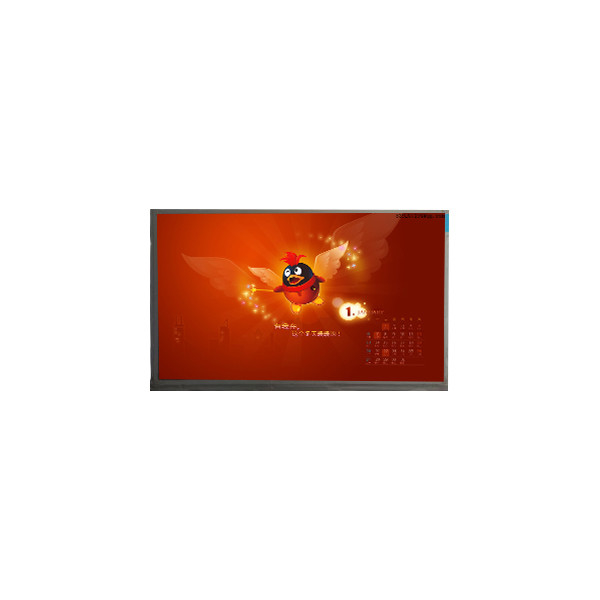

M238HCA-L3E 23.8 inch 1920*1080 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M238HCA-L3E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M238HCA-L3E | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Support Color: | 16.7M 70% NTSC |
Product Description
M238HCA-L3E 23.8 inch 1920*1080 LCD Display Panel
M238HCA-L3E LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M238HCA-L3E |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 535(W)×313(H)×12.7(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 70% NTSC |
| Weight | 2.04/2.27/2.40Kgs (Min./Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 14 (Typ.)(G to G) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Light Source | WLED, 30K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
M238HCA-L3E LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
M238HCA-L3E LCD Panel Shipping and Package :
M238HCA-L3E LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
M238HCA-L3E LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
M238HCA-L3E LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of M238HCA-L3E ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of M238HCA-L3E ?
A: Of course!sample order is welcome !
Q: Can I pay my order of M238HCA-L3E via credit card ?
A: Yes!you can use your credit card through your Paypal account.
