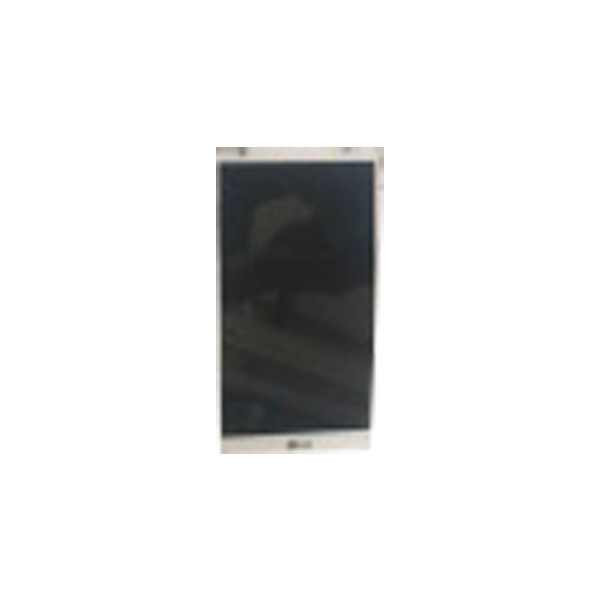

LH600WF2-SD01 6.0 inch LTPS TFT-LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LH600WF2-SD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LH600WF2-SD01 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, Assembly | Resolution: | 1080(RGB)×1920, FHD 368PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 74.52(W)×132.48(H) Mm |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Color Depth: | 16.7M 70%NTSC |
| View Direction: | Symmetry | Designed For: | Mobile Phone |
Product Description
LH600WF2-SD01 6.0 inch LTPS TFT-LCD Panel Screen
LH600WF2-SD01 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LH600WF2-SD01 |
| Diagonal Size | 6.0" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 1080(RGB)×1920, FHD 368PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.52(W)×132.48(H) mm |
| Bezel Opening | - |
| Outline (mm) | 79.6×155.52 (H×V×D) |
| Treatment | Clear |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 70%NTSC |
| Backlight | 7S2PWLED, No Driver |
| Mass | 46.5±4.7g |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, I²C |
| Signal Type | MIPI (4 data lanes), Connector30 pins |
| Voltage Supply | 1.8/5.5/-5.4V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| LH600WF2-SD01 6.0 inch LTPS TFT-LCD Panel Screen | |
LH600WF2-SD01 LCD Panel Payment Instructions :
Accepted Payment Methods:
We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.
Payment Timeline:
To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.
LH600WF2-SD01 LCD Panel Shipping and Package :
LH600WF2-SD01 LCD Panel Shipment Information :
Shipping Address:
We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.
Estimated Delivery Time:
Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.
Delayed Shipments:
If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.
Dispute Policy:
Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.
Customs Duty and Import Tax:
We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.
Important Instructions for Receiving and Handling Your LH600WF2-SD01 LCD Panel :
Inspecting the Package Upon Arrival:
When you receive the package, carefully inspect its condition.
If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.
Reporting Damaged Goods:
If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.
Send these visuals to us to document the issue.
Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.
Testing Before Installation:
After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.
Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.
Product Authenticity and Labels:
Each product from our store includes a unique anti-tear label.
Do not remove this label, as it verifies the product's authenticity and origin from our store.
Documenting Product Issues:
If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.
Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.
LH600WF2-SD01 LCD Panel FAQ :
Q: When would you ship,IF I order LH600WF2-SD01?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LG LH600WF2-SD01 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: Can you test 6.0 inch lcd panel LH600WF2-SD01 before shipping?
A: Don't Worry , The LH600WF2-SD01 will be tested ok before shipping
Q: What happen if LG LH600WF2-SD01 received can't work ?
A: Our LG LH600WF2-SD01 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
