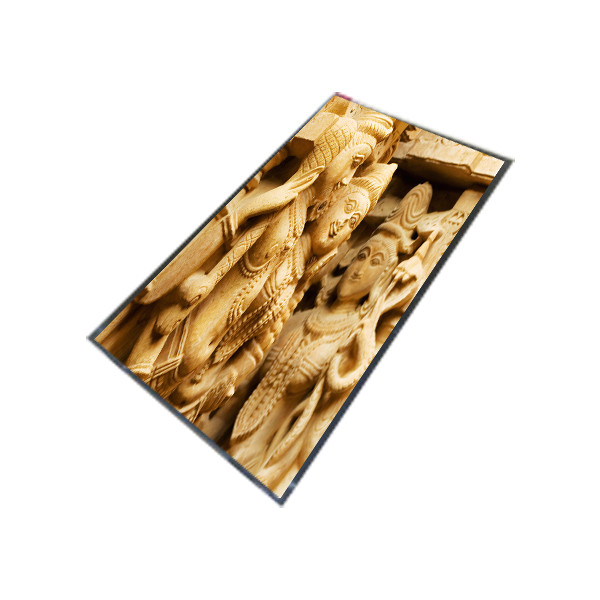

LH546WFB-SD02 5.5 inch 1080*2160 Touch LCD Panel Screen

Brand Name:	LG
Model Number:	LH546WFB-SD02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LH546WFB-SD02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1080(RGB)×2160 442PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.046(W)×124.092(H) Mm

Contrast Ratio:

1000:1 (Typ.) (TM)

Light Source:

7S2P WLED, Without Driver

View Direction:

Symmetry

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LH546WFB-SD02 5.5 inch 1080*2160 Touch LCD Panel Screen

LH546WFB-SD02 LCD Panel Product details :

Brand	LG Display
Model P/N	LH546WFB-SD02
Diagonal Size	5.5"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1080(RGB)×2160 442PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.046(W)×124.092(H) mm
Bezel Opening	-
Outline Size	66.07(W)×139.32(H)×1.74(D) mm
Brightness	450 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 71%NTSC
Frequency	60Hz
Weight	25.0g (Typ.)
Surface	Hard coating
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	-
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	7S2P WLED, Without Driver
Touch Screen	PCAP, I²C
Application	Mobile Phone
Signal Interface	MIPI (4 data lanes), 40 pinsConnector
Input Voltage	1.8/5.1/-5.1V (Typ.)(VDDIO/DDVDH/DDVDL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
LH546WFB-SD02 5.5 inch 1080*2160 Touch LCD Panel Screen

LH546WFB-SD02 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LH546WFB-SD02 LCD Panel Shipping and Package :

LH546WFB-SD02 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LH546WFB-SD02 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LH546WFB-SD02 LCD Panel FAQ :

Q: How do you ship my goods LH546WFB-SD02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LG LH546WFB-SD02 ?

A: 90 days warranty .

Q: How can I trace my order of LH546WFB-SD02 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of LH546WFB-SD02 ?

A: Of course!If you make a large order, we will give you a discount.
