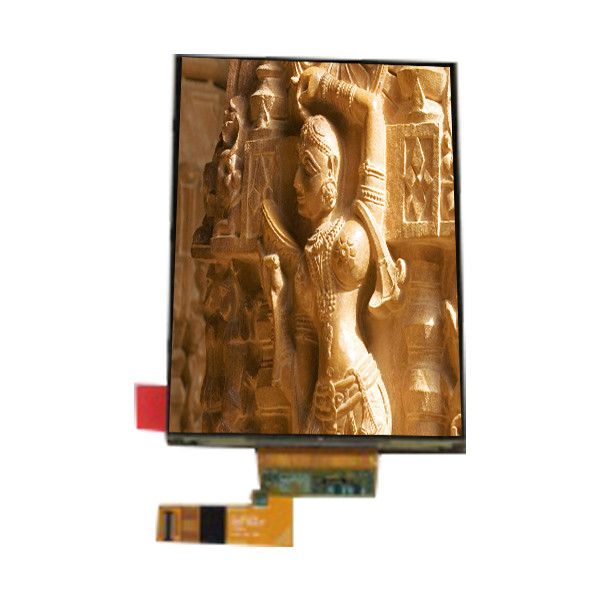

LH520WF1-SH01 5.2 inch LCD Display 1080*1920 LCD Panel Screen

Brand Name:	LG
Model Number:	LH520WF1-SH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LH520WF1-SH01

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL, Full Cell

Resolution:

1080(RGB)×1920, FHD 423PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.8(W)×115.2(H) Mm

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Light Source:

No B/L

View Direction:

Symmetry

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LH520WF1-SH01 5.2 inch LCD Display 1080*1920 LCD Panel Screen

LH520WF1-SH01 LCD Panel Product details :

Brand	LG Display
Model P/N	LH520WF1-SH01
Diagonal Size	5.2"
Panel Type	LTPS TFT-LCD, CELL, Full Cell
Resolution	1080(RGB)×1920, FHD 423PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×115.2(H) mm
Bezel Opening	-
Outline (mm)	66.8×121.8×0.36 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	35 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AH3-IPS, Normally Black, Transmissive
Glass Thickness	0.18+0.18 mm
Transmissivity	3.2% (Typ.)(with Polarizer)
Color Depth	16.7M 70%NTSC
Backlight	No B/L
Mass	8.01±0.08g
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG R63417
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
LH520WF1-SH01 5.2 inch LCD Display 1080*1920 LCD Panel Screen

LH520WF1-SH01 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LH520WF1-SH01 LCD Panel Shipping and Package :

LH520WF1-SH01 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LH520WF1-SH01 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LH520WF1-SH01 LCD Panel FAQ :

Q: How long is the warranty of LH520WF1-SH01 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LH520WF1-SH01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LH520WF1-SH01 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order LH520WF1-SH01 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
