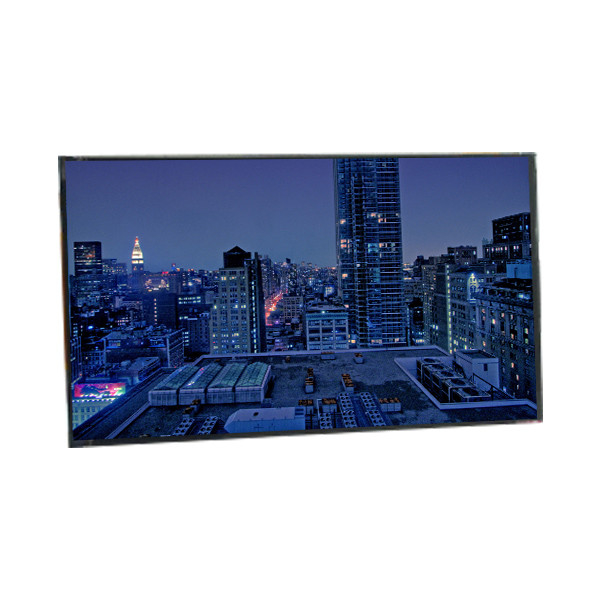

LH500WX5-SH01 Original 5.0 inch LCD Screen Display

Brand Name:	LG
Model Number:	LH500WX5-SH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LH500WX5-SH01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

720(RGB)×1280, WXGA 295PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

61.884(W)×110.016(H) Mm

Work Mode:

AH3-IPS, Normally Black, Transmissive

Light Source:

No B/L

Good View At:

Symmetry

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LH500WX5-SH01 Original 5.0 inch LCD Screen Display

LH500WX5-SH01 LCD Panel Product details :

Brand	LG Display
Model P/N	LH500WX5-SH01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	720(RGB)×1280, WXGA 295PPI
Pixel Format	RGB Vertical Stripe
Active Area	61.884(W)×110.016(H) mm
Bezel Opening	-
Outline(mm)	63.88 × 116.32× 0.4 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AH3-IPS, Normally Black, Transmissive
Glass Thickness	0.20+0.20 mm
Transmissivity	3.4% (Typ.)(with Polarizer)
Color Depth	16.7M 72%NTSC
Backlight	No B/L
Mass	7.60±0.76g
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Suggest COG NT35520
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
LH500WX5-SH01 Original 5.0 inch LCD Screen Display

LH500WX5-SH01 LCD Panel Notice:

Before placing your order for the LH500WX5-SH01 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

LH500WX5-SH01 LCD Panel Shipping and Package :

LH500WX5-SH01 LCD Panel Packing:

We take great care to ensure that the LH500WX5-SH01 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the LH500WX5-SH01 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

LH500WX5-SH01 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the LH500WX5-SH01 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the LH500WX5-SH01 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

LH500WX5-SH01 LCD Panel FAQ :

Q: How long will I receive my goods LH500WX5-SH01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LH500WX5-SH01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LH500WX5-SH01 ?

A: Of course!sample order is welcome !
