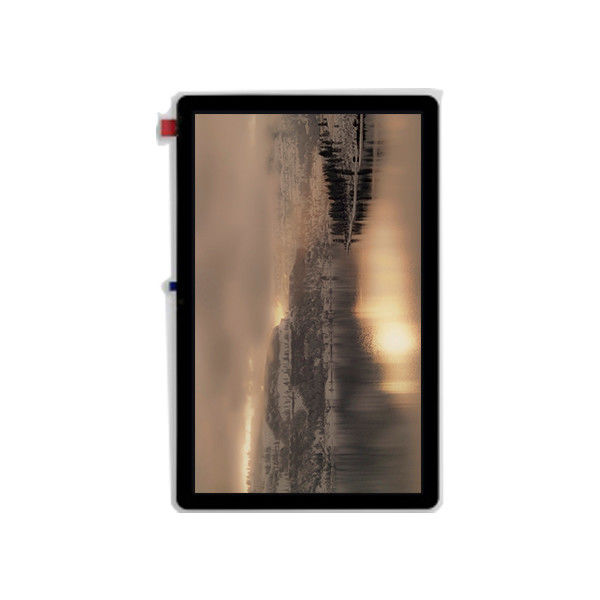

New TV106C9M-LL0 10.6 inch LCD Screen Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV106C9M-LL0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV106C9M-LL0 | Diagonal Size: | 10.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1200(RGB)×2000 219PPI |
| Active Area: | 138.6(W)×231(H) Mm | Outline(mm): | 154.8(H)×147.2(V) Mm |
| Treatment: | Hard Coating | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Color Depth: | 16.7M 72%NTSC | Used For: | Pad & Tablet |
Product Description
New TV106C9M-LL0 10.6 inch LCD Screen Display Module
TV106C9M-LL0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | TV106C9M-LL0 |
| Diagonal Size | 10.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1200(RGB)×2000 219PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 138.6(W)×231(H) mm |
| Bezel Opening | - |
| Outline Dim. | 154.8(H)×147.2(V) mm |
| Treatment | Hard coating |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [9S4P], 15K hours, W/O Driver |
| Weight | 185g (Max.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | MIPI (4 data lanes), 51 pinsConnector |
| Power Supply | 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
TV106C9M-LL0 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
TV106C9M-LL0 LCD Panel Shipping and Package :
TV106C9M-LL0 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
TV106C9M-LL0 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
TV106C9M-LL0 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of TV106C9M-LL0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TV106C9M-LL0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TV106C9M-LL0 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TV106C9M-LL0 ?
A: Of course!sample order is welcome !
