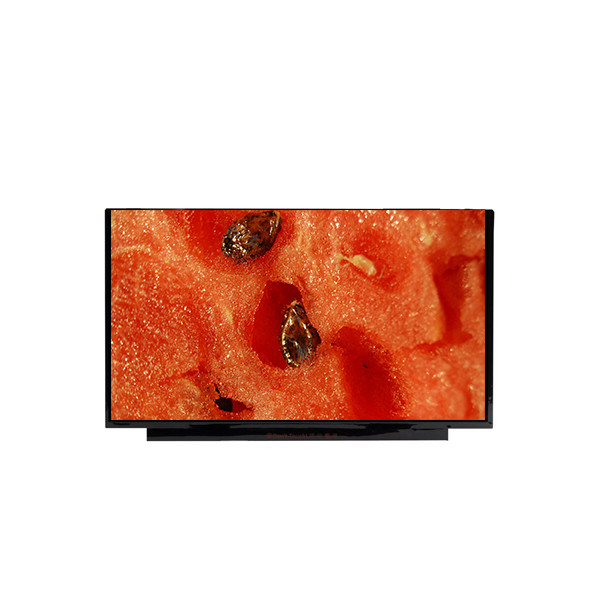

New 14.0 inch NV140FHB-T06 LCD Screen Display Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHB-T06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV140FHB-T06 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 157PPI |
| Active Area: | 309.312(W)×173.988(H) Mm | Outline(mm): | 313.31 × 182.04× 0.86 (H×V×D) |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Luminance: | 0 Cd/m² |
| Color Depth: | 16.7M 100%sRGB | Used For: | Laptop |
Product Description
New 14.0 inch NV140FHB-T06 LCD Screen Display Monitor
NV140FHB-T06 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV140FHB-T06 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 157PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.312(W)×173.988(H) mm |
| Bezel Opening | - |
| Outline(mm) | 313.31 × 182.04× 0.86 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | 5.5% (Typ.) |
| Color Depth | 16.7M 100%sRGB |
| Backlight | No B/L |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch, I²C |
| Driver IC list | Built-inCOG4 source chips |
| Signal Type | eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
NV140FHB-T06 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
NV140FHB-T06 LCD Panel Shipping and Package :
NV140FHB-T06 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
NV140FHB-T06 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
NV140FHB-T06 LCD Panel FAQ :
Q: How to order lcd screen NV140FHB-T06 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of NV140FHB-T06 ?
A: 90 days.
Q: What happen if the NV140FHB-T06 I received can't work ?
A: Our lcd panel NV140FHB-T06 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my NV140FHB-T06 lcd display when shipping?
A: Yes , please inform us the value you want .
