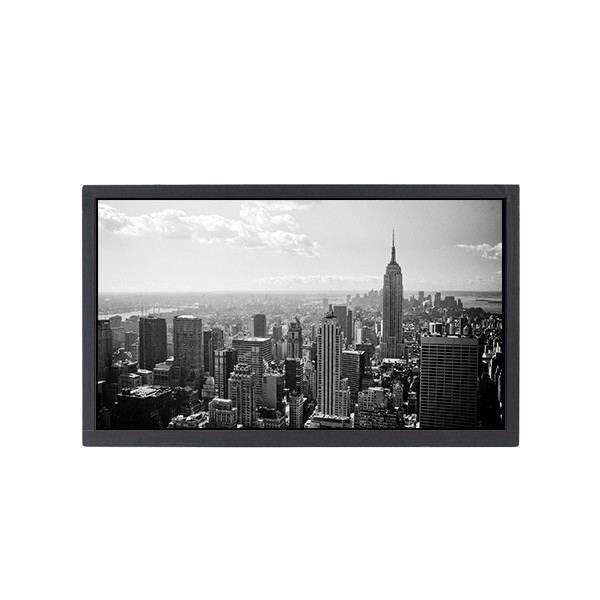

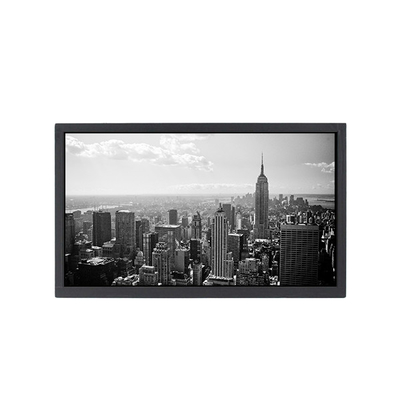

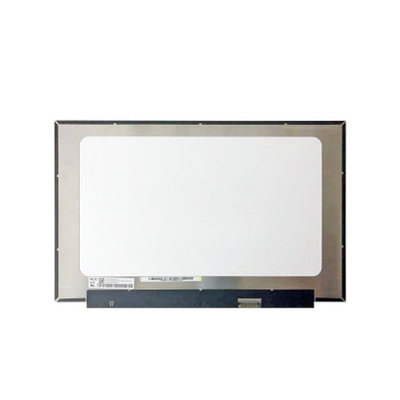

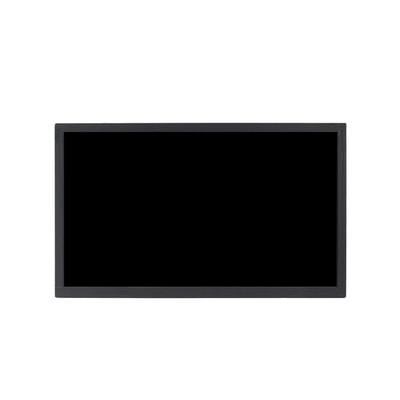

NV140WUM-N44 14.0 inch LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140WUM-N44 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV140WUM-N44 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 161PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 301.594(W)×188.496(H) Mm |
| Outline Size: | 307.29(W)×205.35(H)×3(D) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
NV140WUM-N44 14.0 inch LCD Display Module
NV140WUM-N44 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV140WUM-N44 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 161PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 301.594(W)×188.496(H) mm |
| Bezel Opening | - |
| Outline Size | 307.29(W)×205.35(H)×3(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.2M 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | HADS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 10S6P WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
